Production Introduction

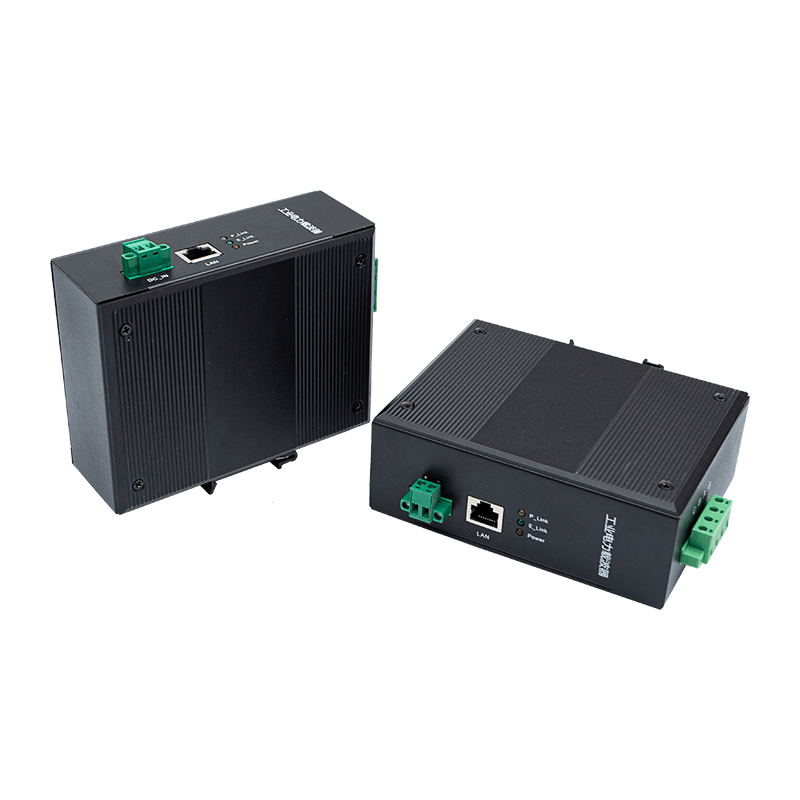

High Definition- Power Line Communication KS1000M is a gigabit bandwidth power carrier communication equipment based on IEEE P1901, using OFDM modulation and demodulation technology, and conforming to the EU EN-50561 standard.High Definition- Power Line Communication（For short HD-PLC).A type of communication that communication refers to the high-speed transmission of data through existing power lines or slip contact cord as a medium for information transmission，with high communication rate, two-way real-time transmission, strong anti-interference, good stability, scalable,strong scalability and other advantages.
HD-PLC KS1000M is a gigabit bandwidth power carrier，meet HomePlug AV/AV2 standard，self-contained routing algorithm，self-routing,self-organized network，AES-128bit encryption algorithm，fully transparent dissemination of data，plug-and-play.Supports a variety of networking methods, bus, star, tree, and hybrid network topologies structure.

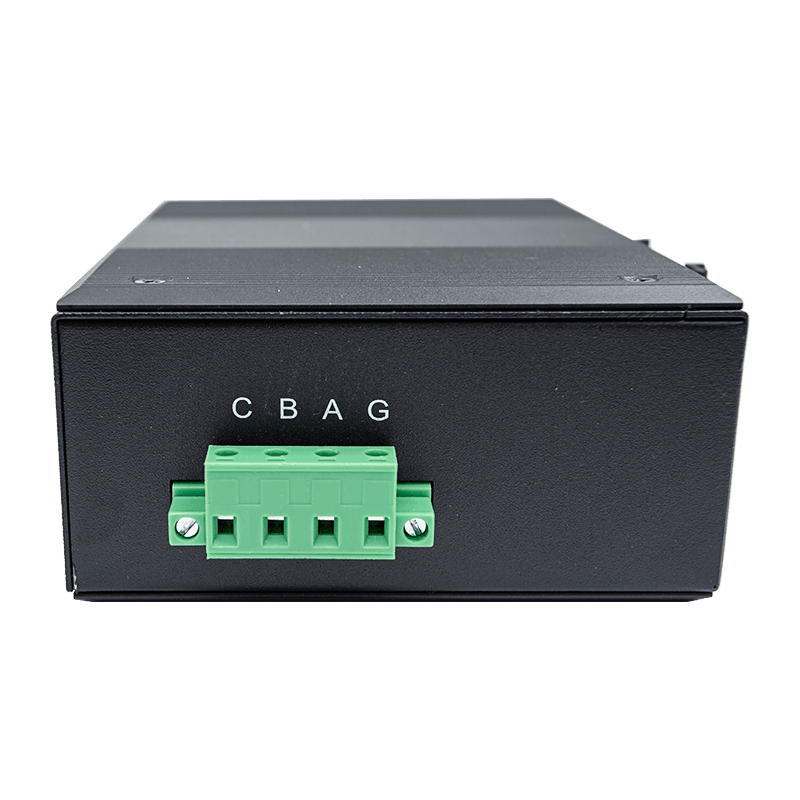

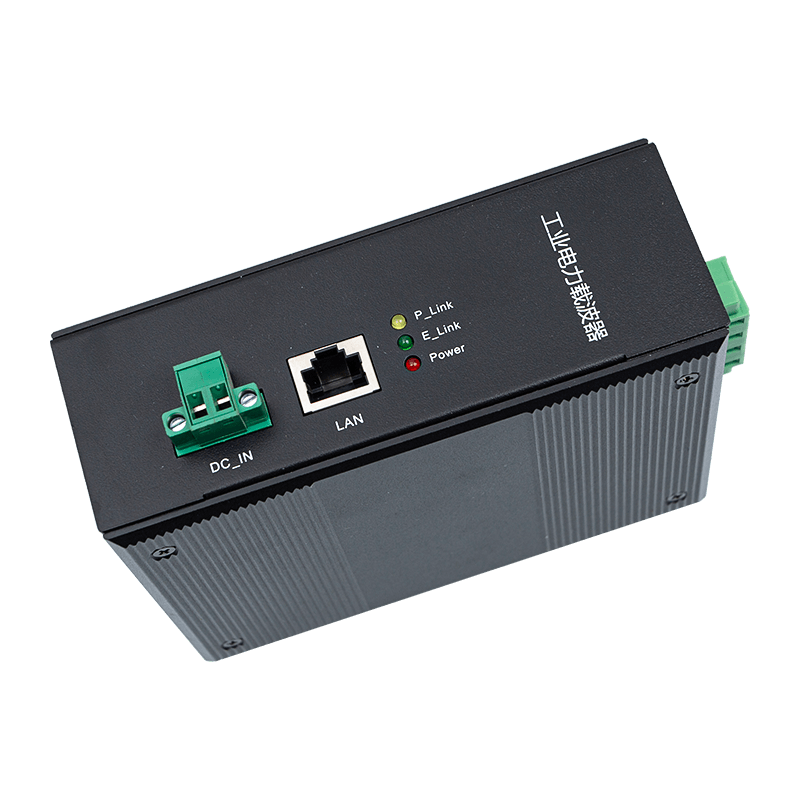

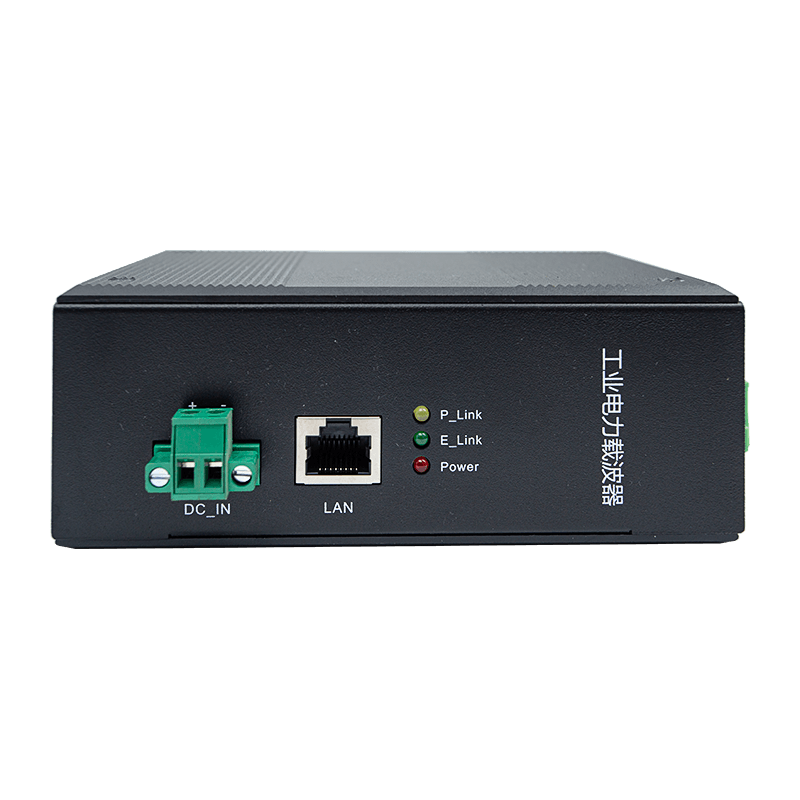

HD-PLC KS1000MA is adopt dual power supply design，it can be powered either through the power supply port or through the PLC channel port line to take power.When using the power supply port to offer power supply, the power supply port voltage is DC12 ~ 48V，PLC channel port support power line or slid contact cord carrier communication below AC 500V or DC 700V.When the voltage of power line or slip contact cord is AC85~500V or DC100~700V，the carrier can be picked up the power on power lines or slid contact cord via the PLC channel port.
HD-PLC KS1000M is an industrial grade power line carrier ，suitable for industrial communication scenarios in harsh environments，including mines, oilfields, warehousing, logistics sorting, three-dimensional parking garages, railway and metro communications, industrial automation control and other fields, through the existing power lines or slip contact cord for bidirectional, real-time, high-speed, long-distance data transmission.
