Product Introduction
High Definition- Power Line Communication KS700M2P is an industrial-grade, high-bandwidth, long-distance transmission power carrier communication device with excellent performance,based on IEEE P1901, using OFDM modulation and demodulation technology,industrial-grade bandwidth power line carrier communication equipment compliant with the European Union's EN-50561 standard specification.HD-PLC utilize existing power lines or slip touch cord as the information transmission medium for high-speed, long-distance data transmission.
It is characterized by high communication rate, bi-directional transparent transmission, good transmission stability, strong scalability and strong anti-interference.
HD-PLC KS700M2P built-in LDPC error correction codec，AES-128 bit encrypted data，data encryption and transparent transmission, self-contained routing algorithm，automatic networking，plug and play,supports bus, star, tree, and hybrid network topologies structure.Supports network port data on any two wires，such as DC wire, AC wire, twisted pair、parallel lines、coaxial cable、slip touch cord etc for high-speed long-distance transmission.Carrier rate up to 100 megabits,ordinary power line transmission distance can reach to 500 meter，the coaxial cable can transmit 2-3 kilometer.The relay version supports up to 10 levels of relay，it can transmit up to 5 kilometer.

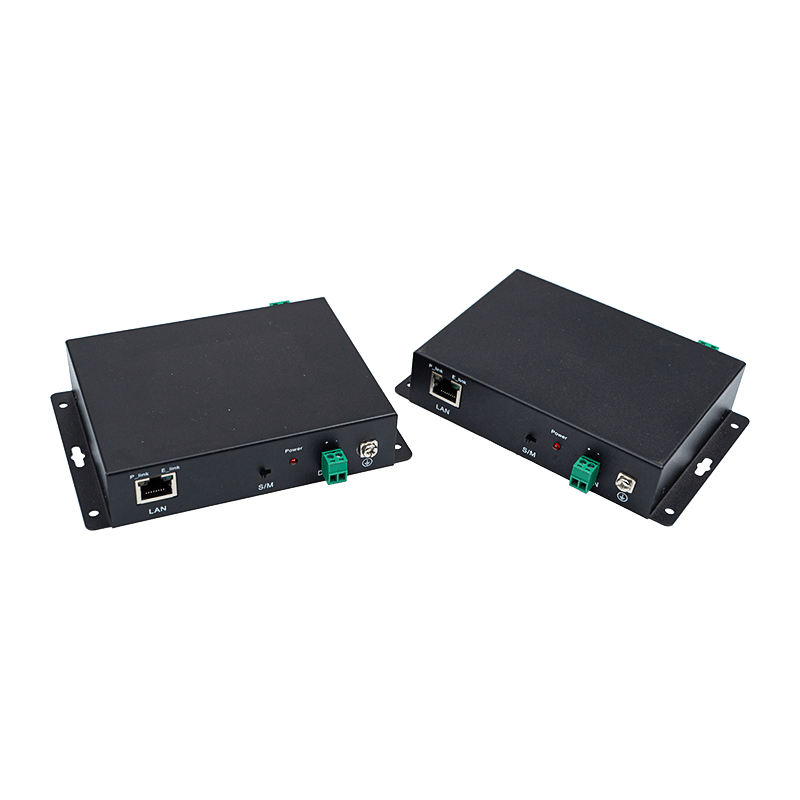

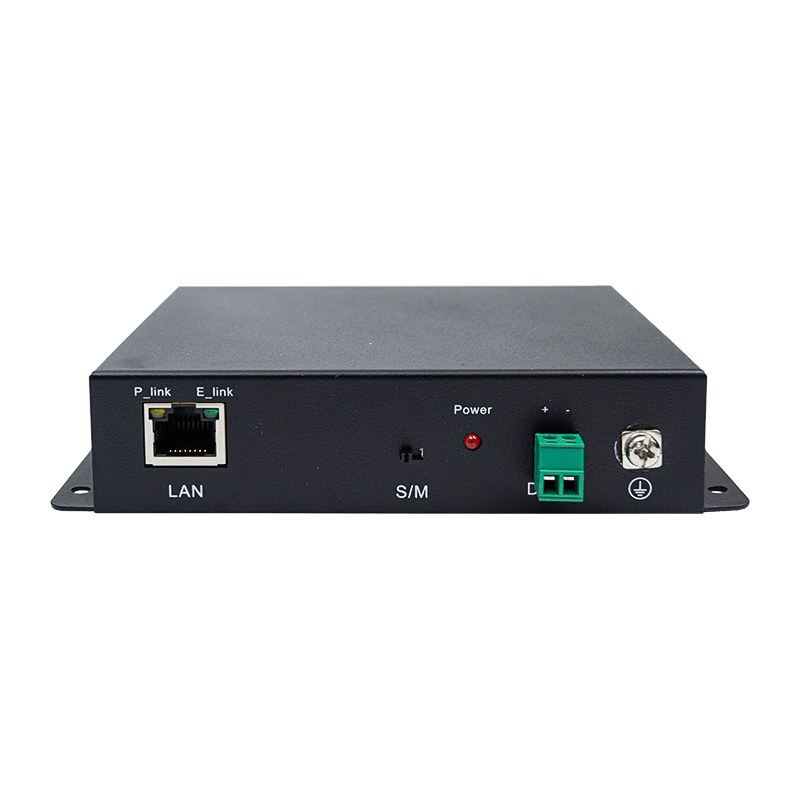

For different applications，KS700M2P is available in several versions，hardware version is available in standard version、high bandwidth version、 long-distance edition、 and broadcast version，software version is include high performance edition、 relay version、 specialized version for slip touch cord, etc.KS700M2P need to set up the master and slave machines，one-touch setup of host and extension via master-slave dip switches，M-side is the hosts, S-side is the slave.Supports one-to-one or one-to-multipoint network device networking，hundred megabit bandwidth，long transmission distance.Supports hot-swapping, plug and play.

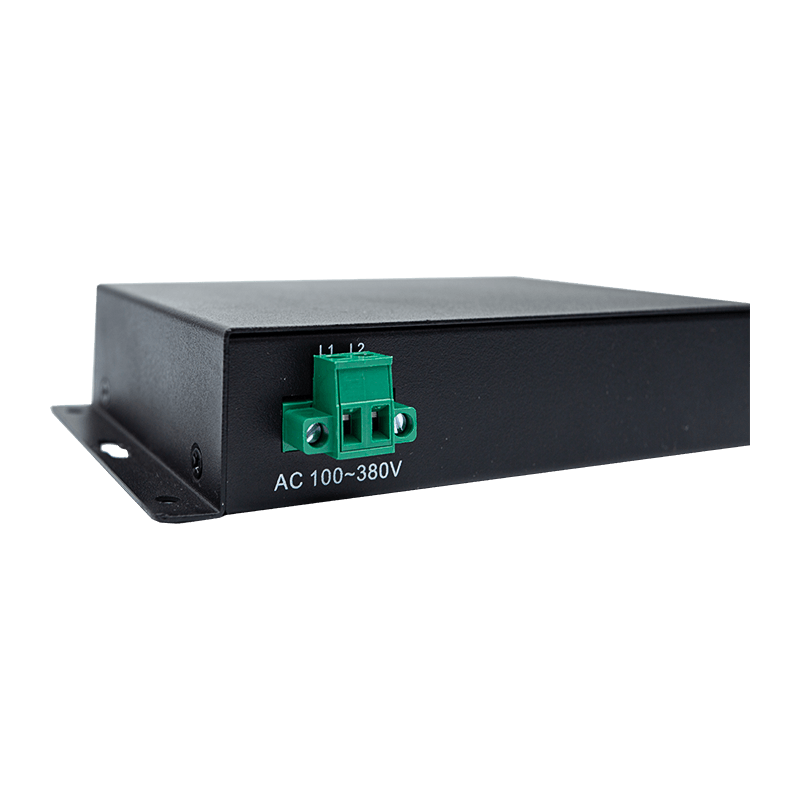

HD-PLC KS700M2P meet Industry standard，internal integrated coupling circuitry，enhanced high voltage isolation，upgraded surge protection，high anti-interference，the performance is more superiority.It is suitable for carrier communication on single-phase, three-phase, DC power line or slip touch cord.It has been widely used in various types of video transmission systems and industrial control systems，such as three-dimensional parking garage, warehousing stereoscopic warehouse, intelligent air-car, railway communication monitoring system, mine monitoring system, wind energy new energy, new energy power station, industrial video surveillance and so on.
