Features
● Designed entirely of 316L stainless steel, with an IP68 protection rating.
● More than 2 times the overpressure, and up to 5 times the overpressure for a range of less than 5 meters.
● Anti-interference and lightning strike protection design.
● High precision, high stability, and high reliability.
Application areas
● Petroleum, chemical, and power industries.
● Urban water supply, hydrological exploration, geology.
● Industries such as fluid pressure detection and control.
Product overview

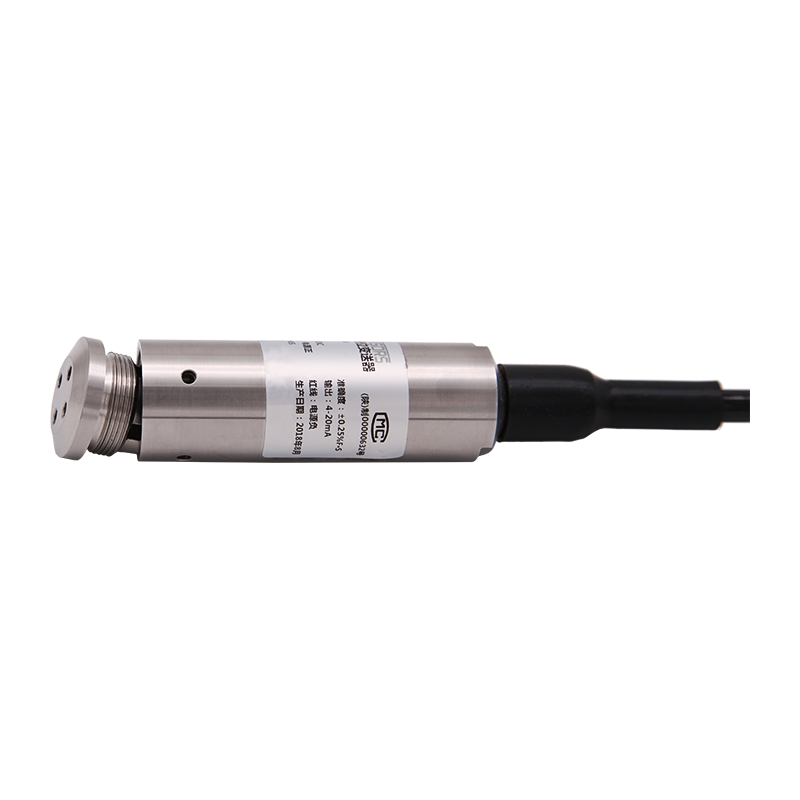

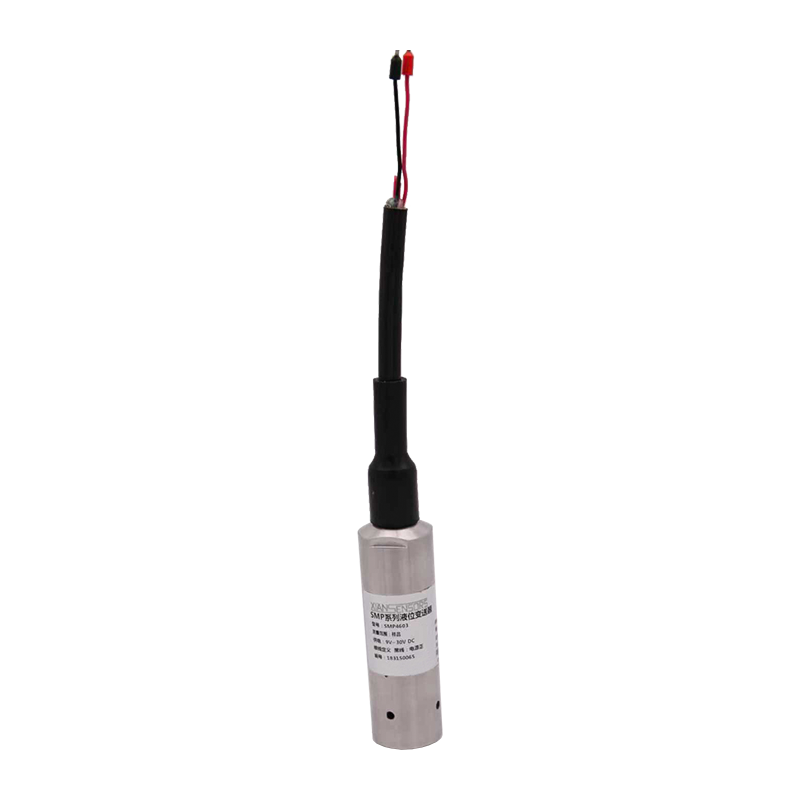

The AI-LE general- purpose submersible level transmitter uses a high-performance diffused silicon pressure sensor as the measuring element . It measures the hydrostatic pressure of the liquid, which is proportional to the liquid depth, and converts it into a standard current or voltage signal output through a signal conditioning circuit to achieve accurate measurement of the liquid depth.
This product is suitable for measuring the liquid level of various media in petrochemical, metallurgical, power, pharmaceutical, water supply and drainage systems and other industries.
External structure: (unit: mm)
Technical parameters:
|
Pressure parameters
|
|
Range
|
0 mH2O～1 mH2O┅200 mH2O
|
|
Overload
|
2 times full-scale pressure, 5 times overpressure for ranges including 5 mH2O.
|
|
Electrical parameters
|
|
Output type
|
Current type
|
Voltage type
|
|
Power supply
|
9~30V DC
|
12~30V DC
|
|
Output signal
|
4mA～20mA DC (two-wire system)
|
0/1V~5/10V DC (three-wire system)
|
|
Load resistor
|
≤（U-9）/0.02 Ω (two-wire system)
|
≥10k (three-wire system)
|
|
Structural parameters
|
|
Enclosure
|
Stainless steel
|
|
Sensor
|
316L stainless steel
|
|
Sealing ring
|
Fluororubber
|
|
Cable
|
∅7.5mm polyethylene special cable
|
|
Protection level
|
IP68
|
|
Environmental conditions
|
|
Media suitability
|
Various fluids that do not corrode 316L stainless steel and fluororubber
|
|
Compensation temperature
|
-10℃~80℃
|
|
Operating temperature
|
-20℃~85℃
|
|
Storage temperature
|
-40℃~125℃
|
|
Performance indicators
|
|
Accuracy
|
±0.25% FS (Typical)
|
±0.5%FS (Maximum)
|
|
Zero point temperature error
|
±0.05%FS/℃ (≤5 mH2O)
|
±0.02%FS/℃ (>5 mH2O)
|
|
Sensitivity error
|
±0.05%FS/℃ (≤5 mH2O)
|
±0.05%FS/℃ (>5 mH2O)
|
|
Long-term stability
|
±0.3%FS/year (maximum)
|
