High-speed Power Line Communication (H-PLC)

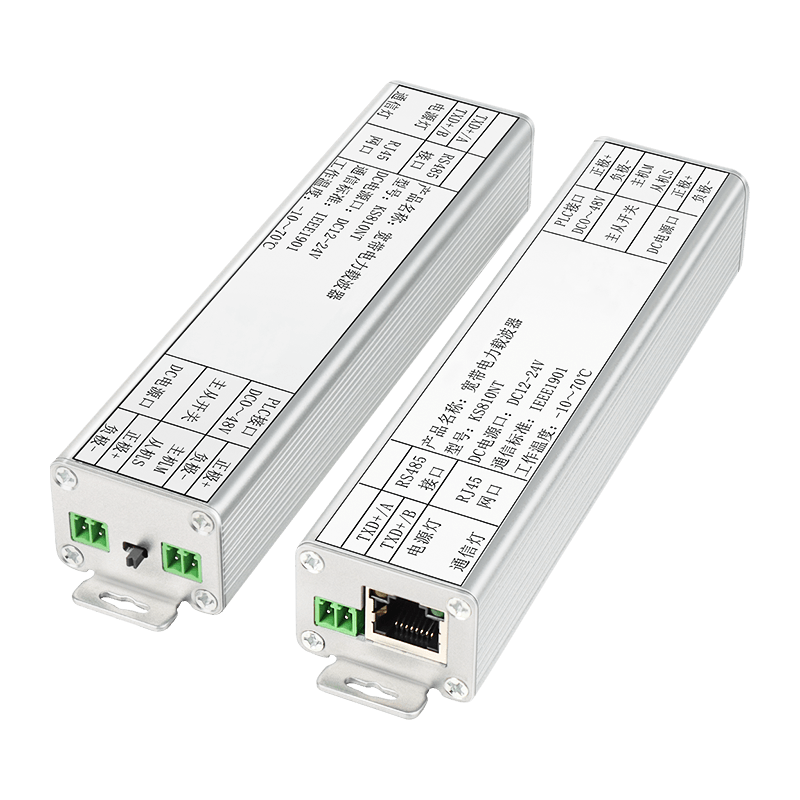

KS810NT

General Power Line Broadband Modem

  • General Power Line Broadband Modem
  • General Power Line Broadband Modem
  • General Power Line Broadband Modem
  • General Power Line Broadband Modem
  • General Power Line Broadband Modem
  • General Power Line Broadband Modem
  • General Power Line Broadband Modem
  • General Power Line Broadband Modem
  • General Power Line Broadband Modem
  • General Power Line Broadband Modem

General type KS810NT is suitable for alternating current AC 0-220V or direct current DC 0-400V power line carrier (PLC) communications,AC, DC, or uncharged dedicated lines are available.The PLC need separate power supply,supply voltage is DC 12-48V.According to the power line with the load situation is divided into two types of wiring, with load and without load dedicated line.

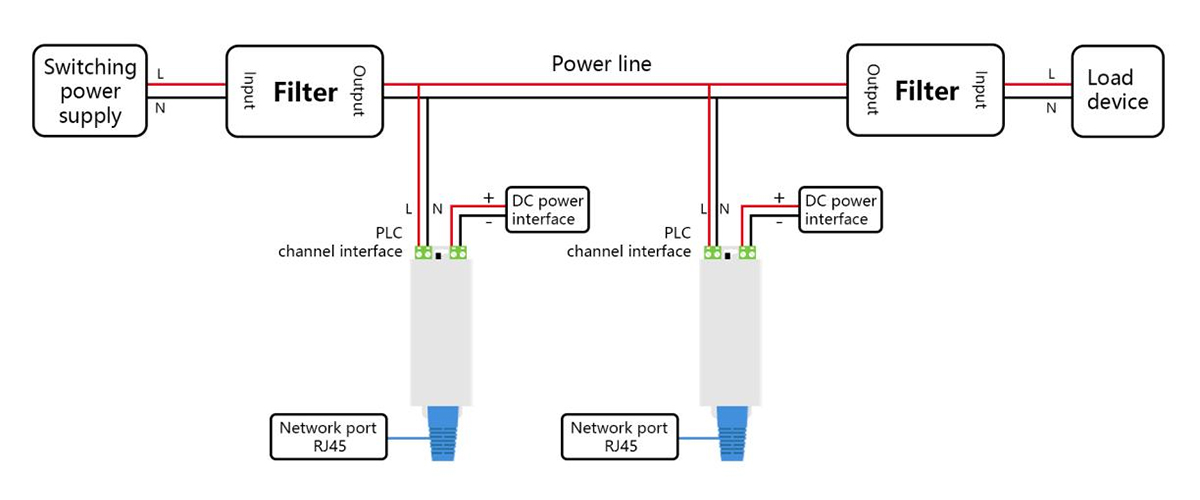

3.General type KS810NTpower line with load,need to be used with filter.The power port connects to a DC12-48V power supply,distinguish between positive and negative poles;PLC channel port is connected in parallel to the DC power line,no need to distinguish between phase sequence or positive and negative polarity.Reference wiring schematic:

Figure 3

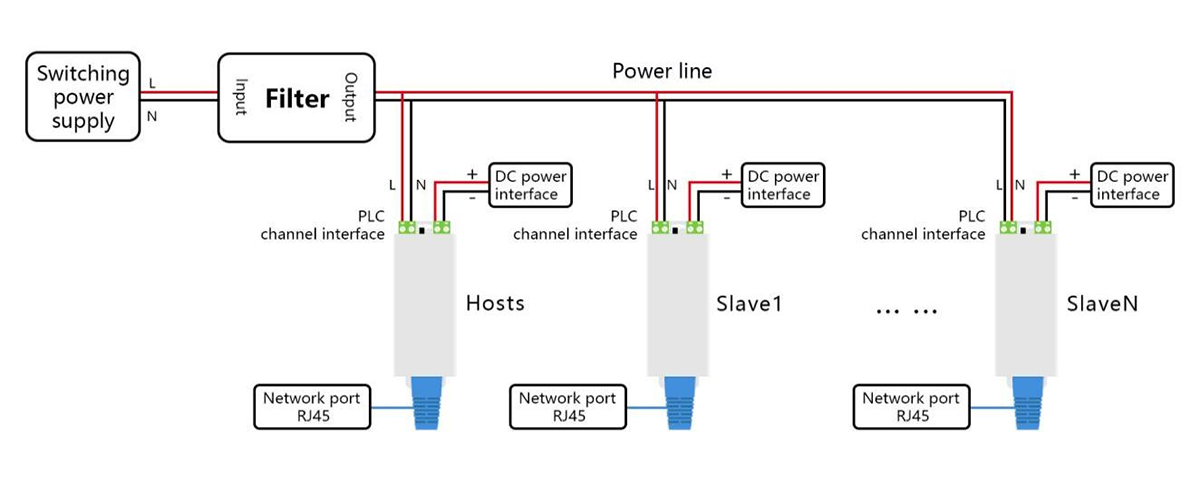

4. General type KS810NT power lines without loads go on dedicated lines,power port for DC12-48V power supply,distinguish between positive and negative poles;PLC channel port is connected in parallel to the DC power line,no need to distinguish between phase sequence or positive and negative polarity.Reference wiring schematic:

Figure 4

Technical data

Classification

Technical indicators

Power supply

DC 12-48V

PLC Signal port

NS type: DC12-48V

NT type: AC 0-220V or DC 0-400V

Any two-core cables, power line, slip contact cord, slip ring cables

Modulation type

OFDM modulation type

Carrier frequency

2~28 MHz

Ethernet bandwidth

10M/100Mbps self-adaption

Transmission distance

Ordinary power lines is 500 meter,coaxial cable 2 kilometer,class 10 relay up to 3-5 kilometre

RS485

Support Modbus RTU agreement,baud rate configurable 1200~115200bps

Data delay

Within 10ms

Packet loss probability

Less than 0.1‰

Overall power consumption

≤3W

Standard agreement

TCP/IP,UDP,Profinet,Home Plug,Home PlugAV,Modbus-TCP,

IEEE 802.3,IEEE 802.3U,IEEE 802.3ab,IEEE 1905.1,

IEEE 1900,IEEE 1901 etc

Way of encryption

AES-128bit

Multicast

Support IGMP multicast protocols,the maximum number of nodes is 128

Exterior dimensions

Size:160*35*26mm (L*W*H)

Weight:250g

Install:Earhook

Environmental requirement

Operating temperature:-40℃~85℃

Operating humidity:20%-95%(No condensation)

Storage temperature:-40℃~85℃

Working time

Industrial grade, supports 7*24 hours all-weather work
