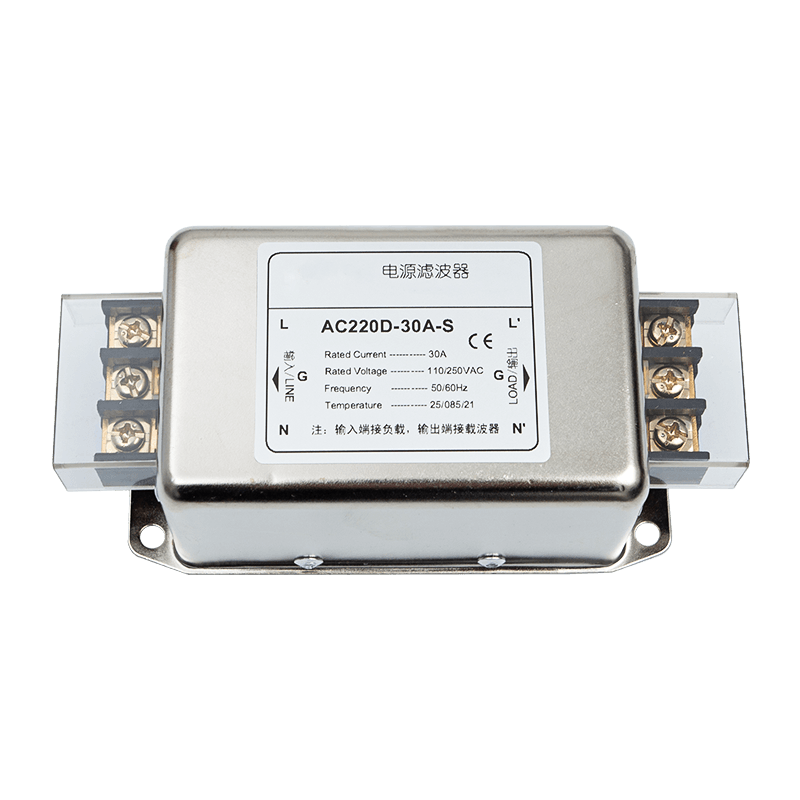

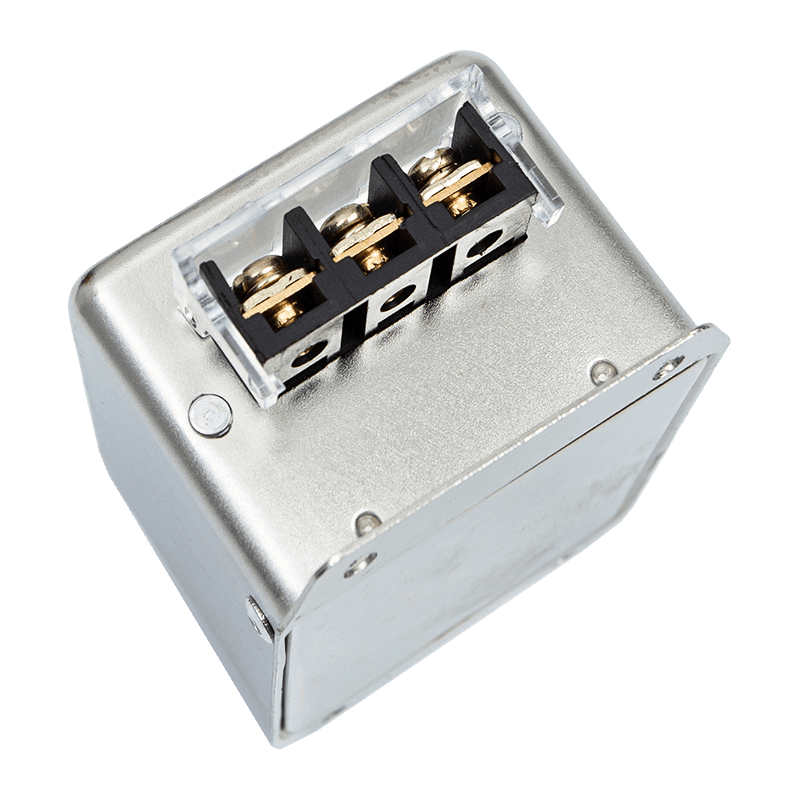

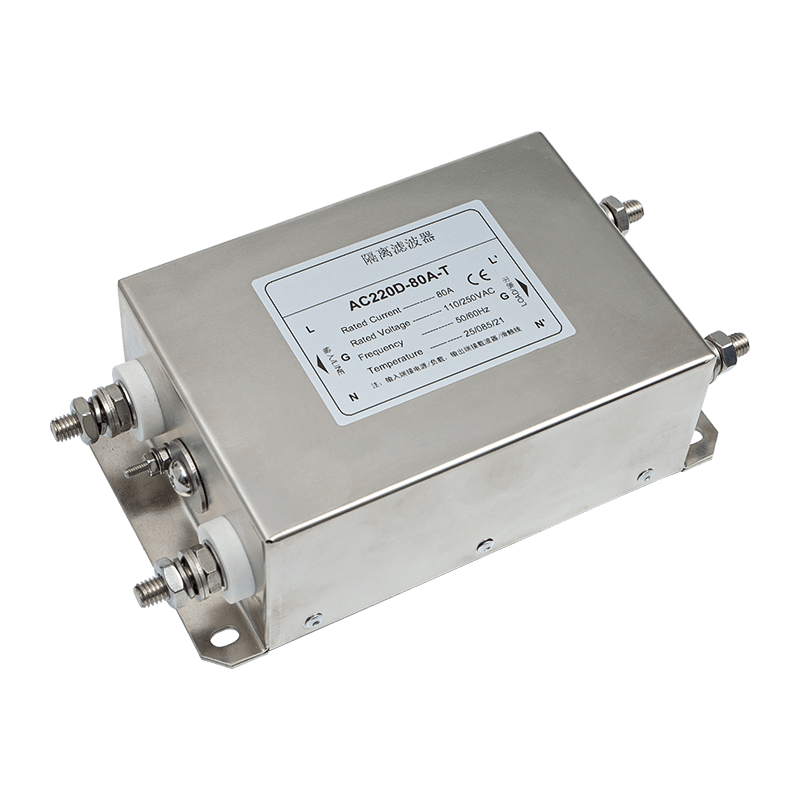

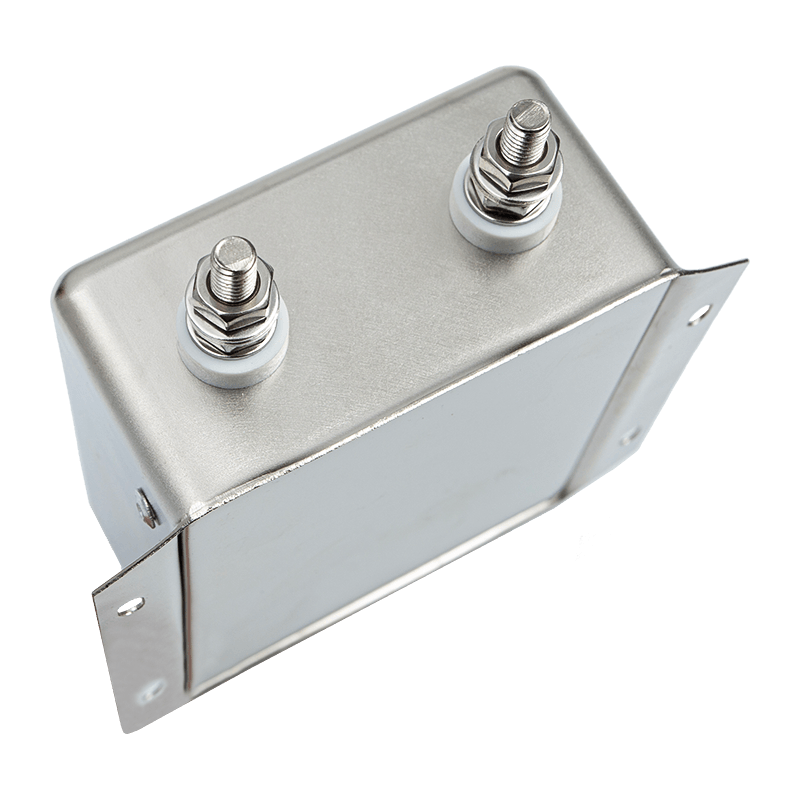

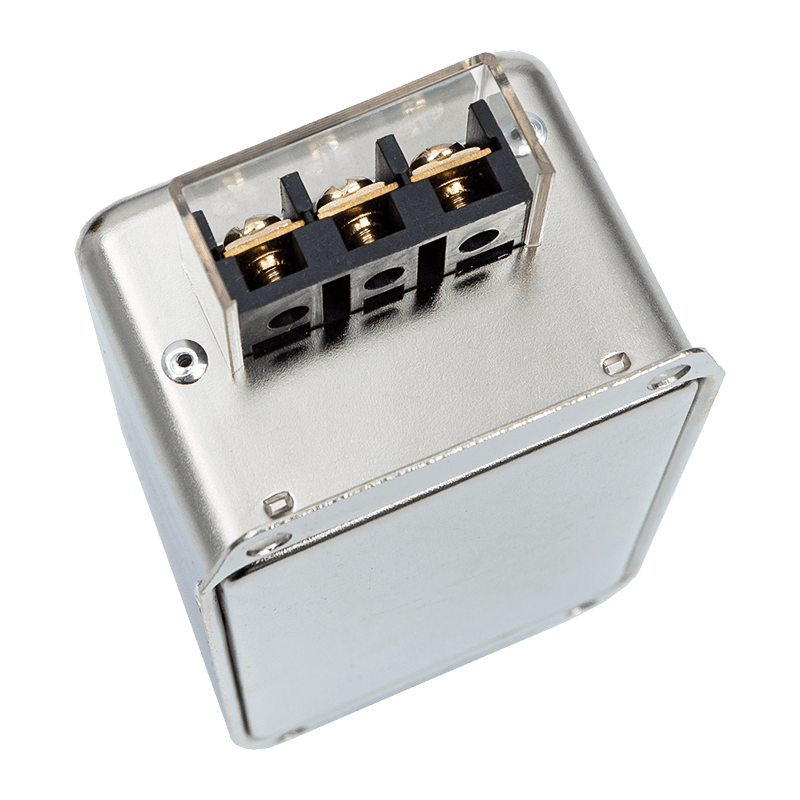

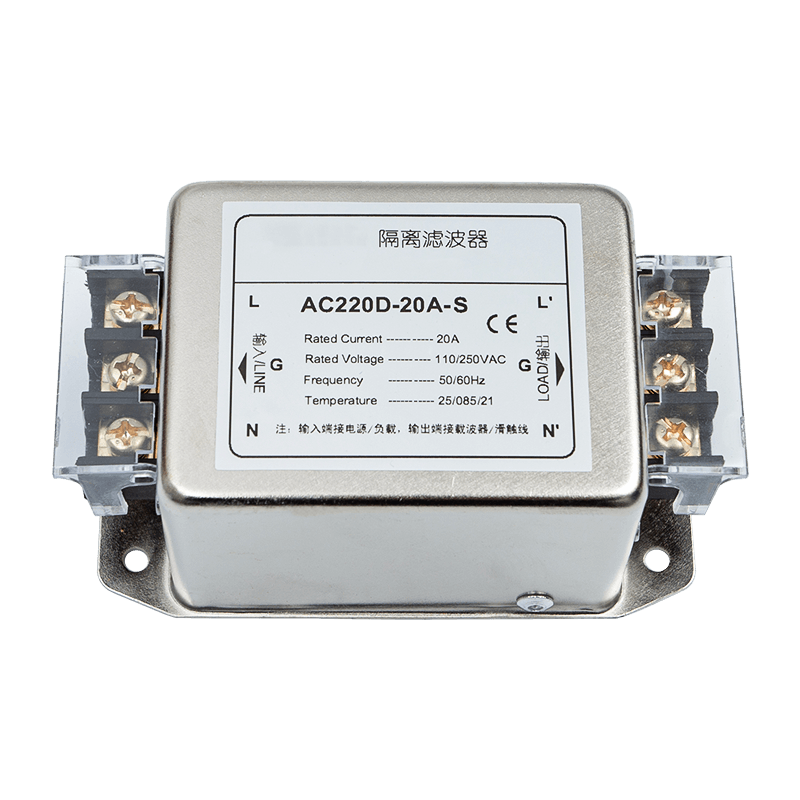

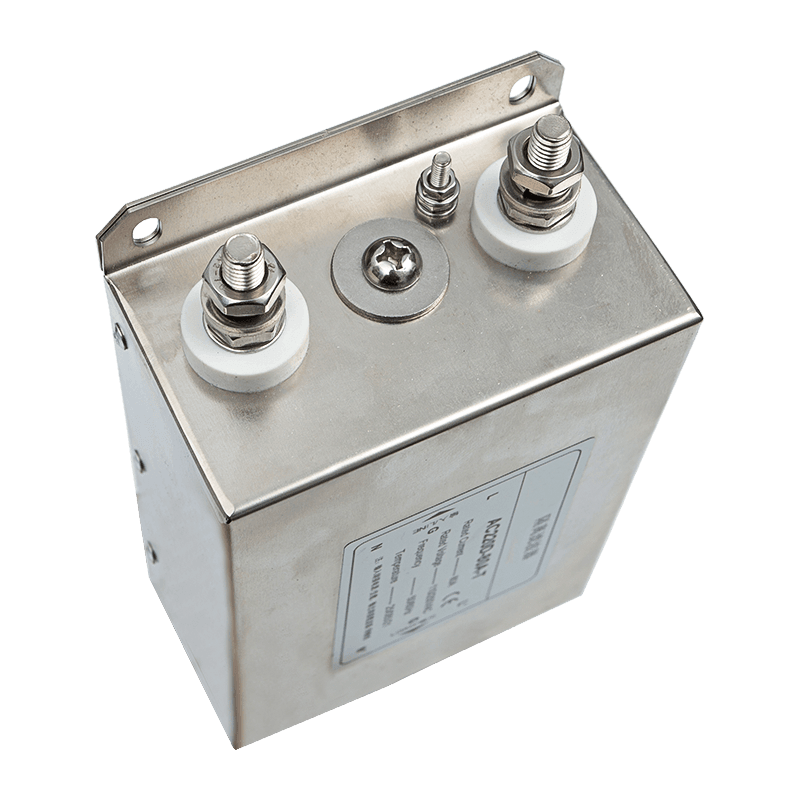

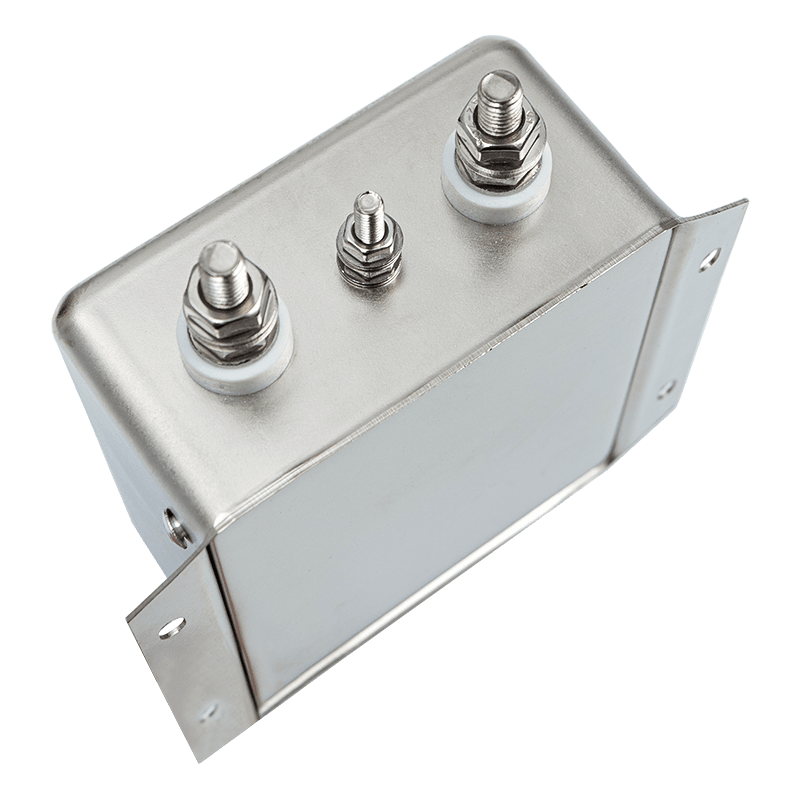

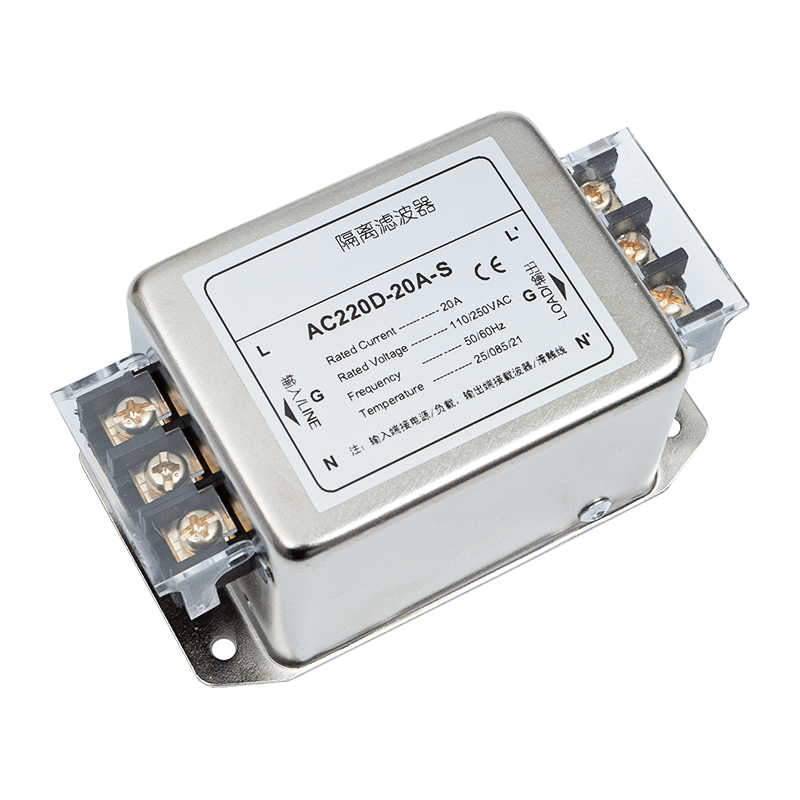

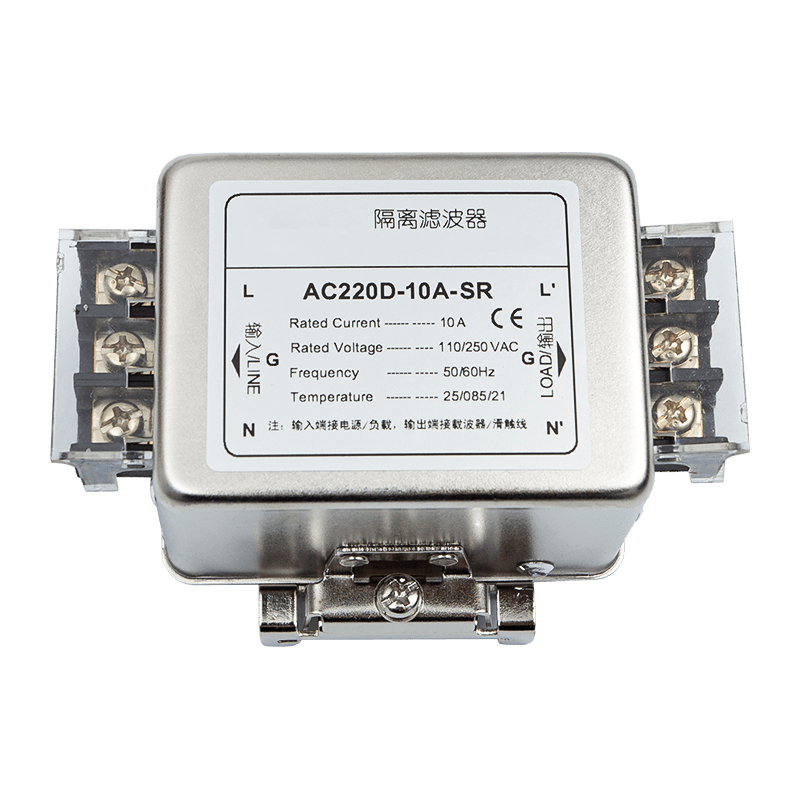

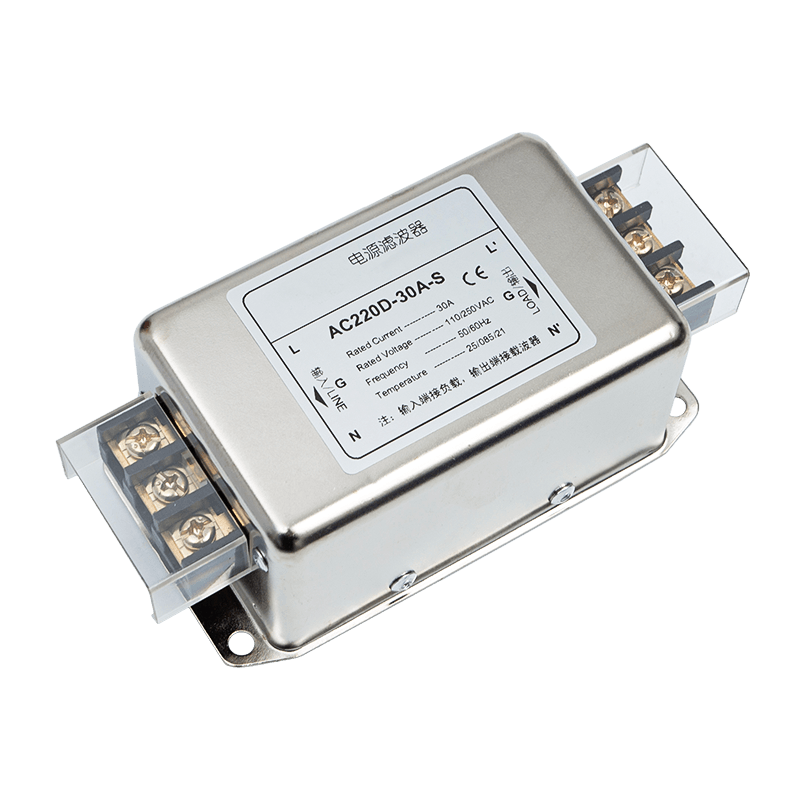

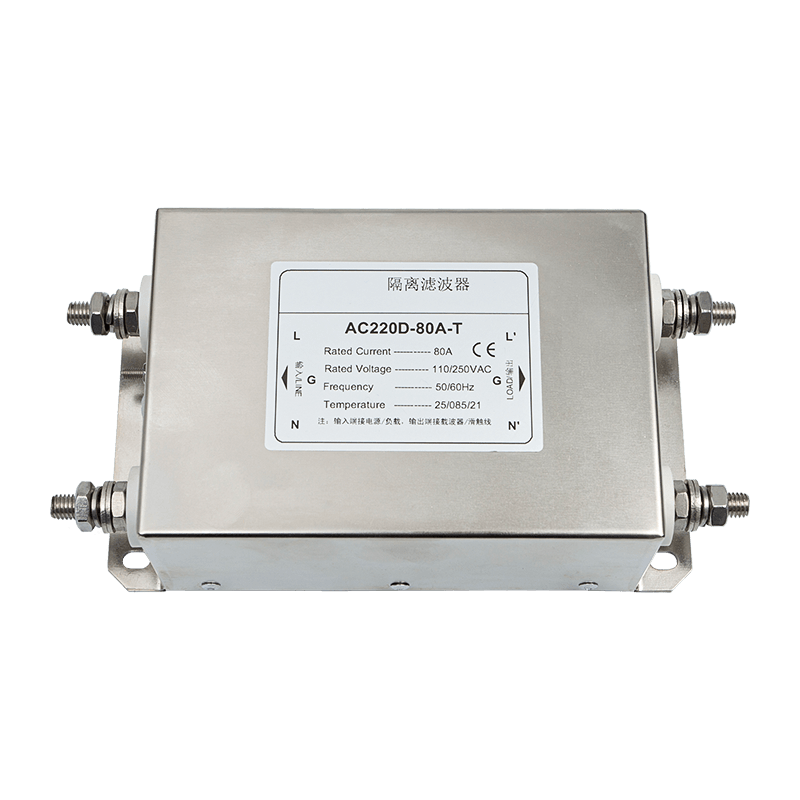

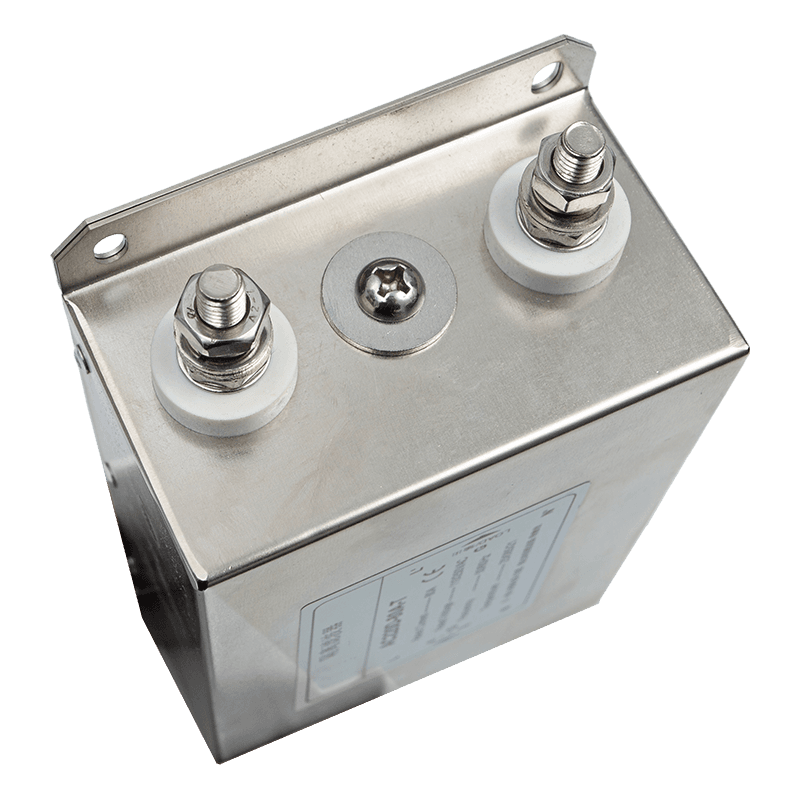

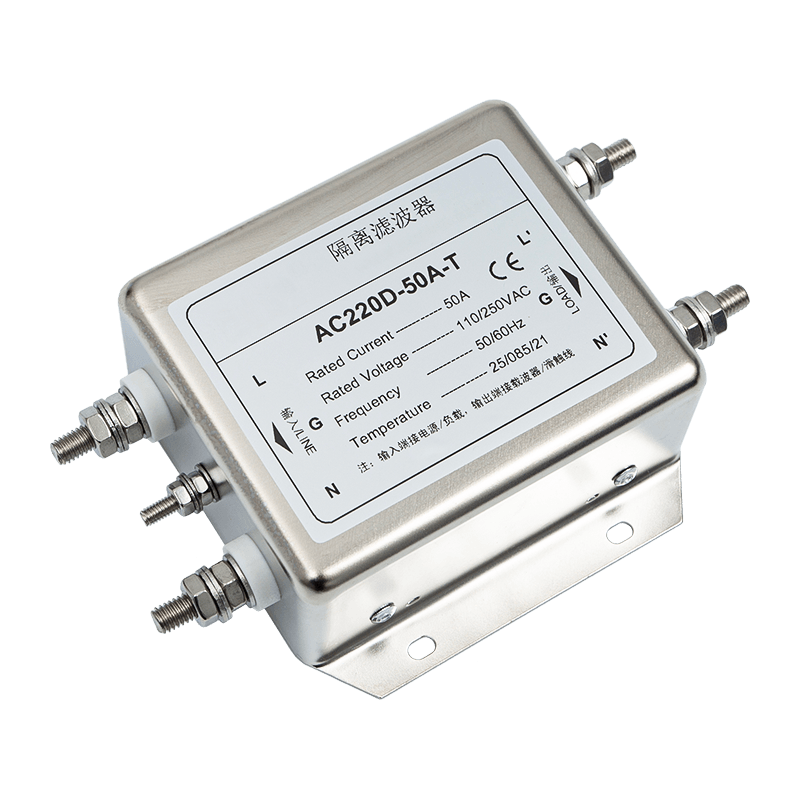

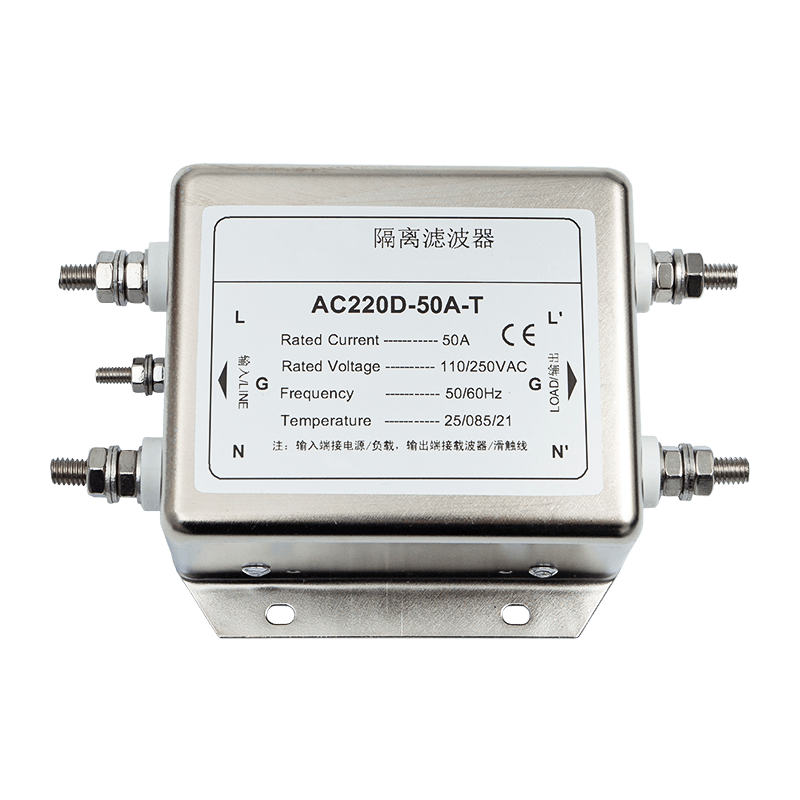

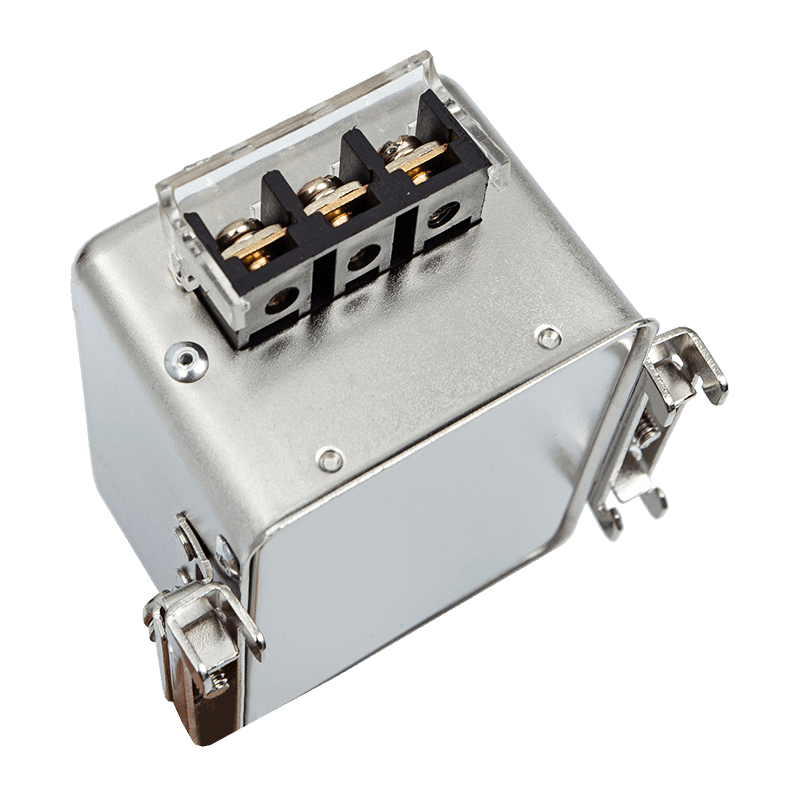

AC220D

Single-Phase Secondary Power Filters

  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters
  • Single-Phase Secondary Power Filters

Application

● Isolation filters are specialised components for power line carrier communication, effectively filtering out interference on power lines while isolating the carrier signal. They provide excellent isolation and filtering performance.

● Isolation filters can resolve issues such as overvoltage, overcurrent, overload, overheating, false tripping, and failure to operate caused by harmonics and surges in the power grid affecting load equipment.

● Isolation filters are connected in series on power lines, installed externally on power line carrier equipment, to block and isolate the impact of grid loads on the equipment and the interference caused to power line carrier communications.

● DC isolation filters are only suitable for use on DC power lines and must not be employed on AC power lines.

Technical conditions (Ratings and Values)

Rated Voltage

0/400VDC

Operating Frequency

50/60Hz

Rated Current

10~50A (More than 50A can be customized)

Filter Range

10KHz~30MHz

Hi-pot Test

1450VDC  2sec(Line to Line)

2250VDC  2sec(Line to Ground)

Climatic Category

25/085/21 (-25°C to +85°C)

Relevant Design Standards

UL 1283,  CSA 22.2 No. 8 1986,

IEC/EN60939
