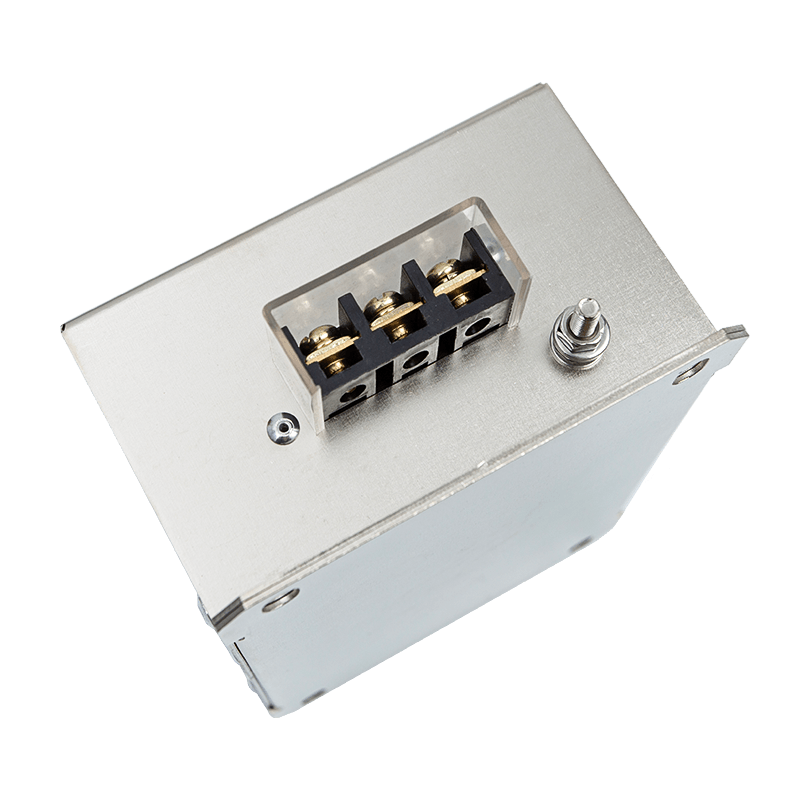

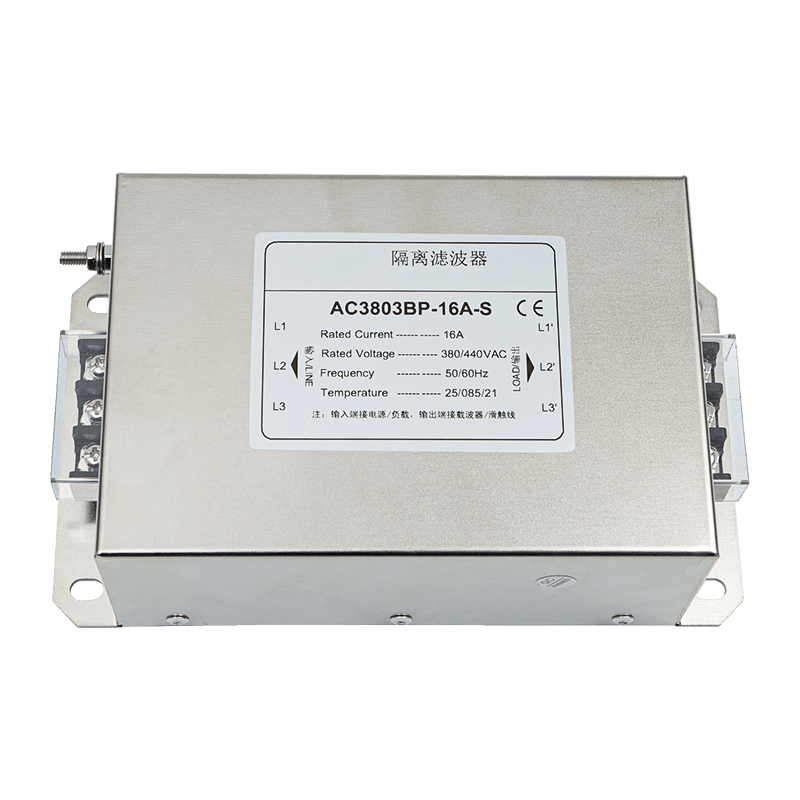

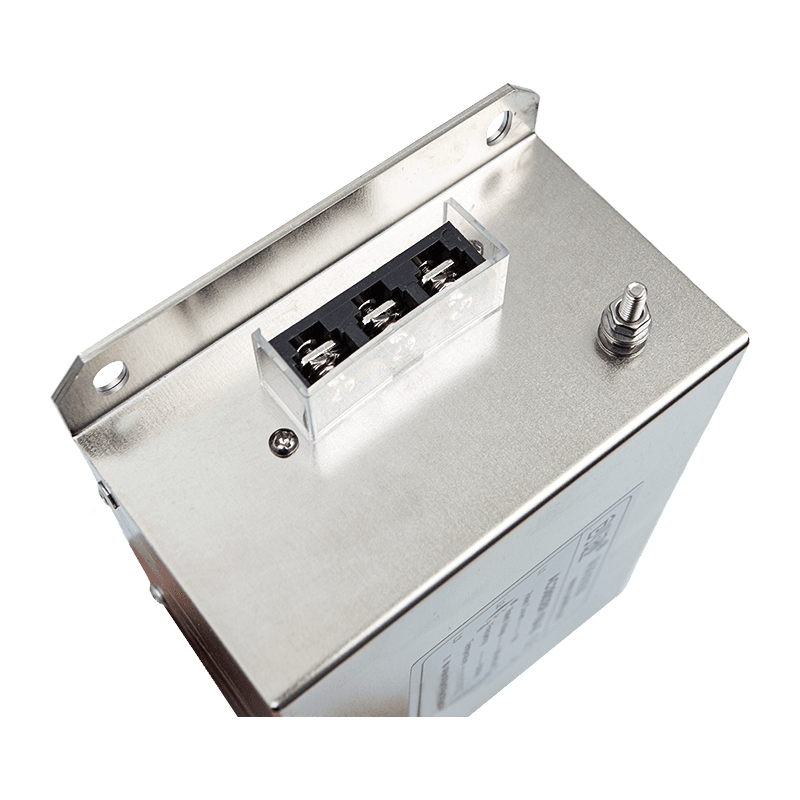

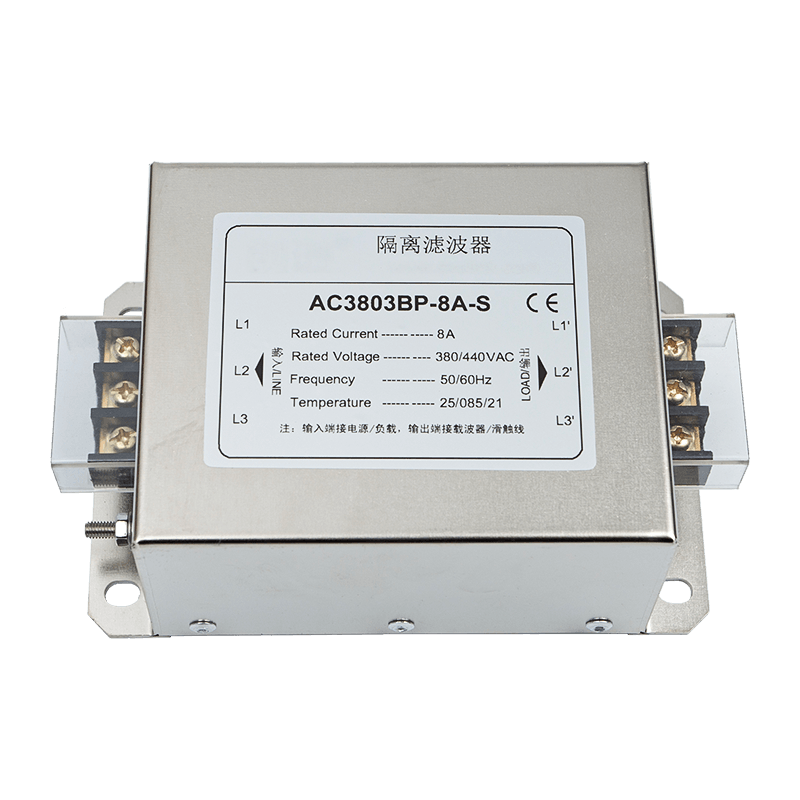

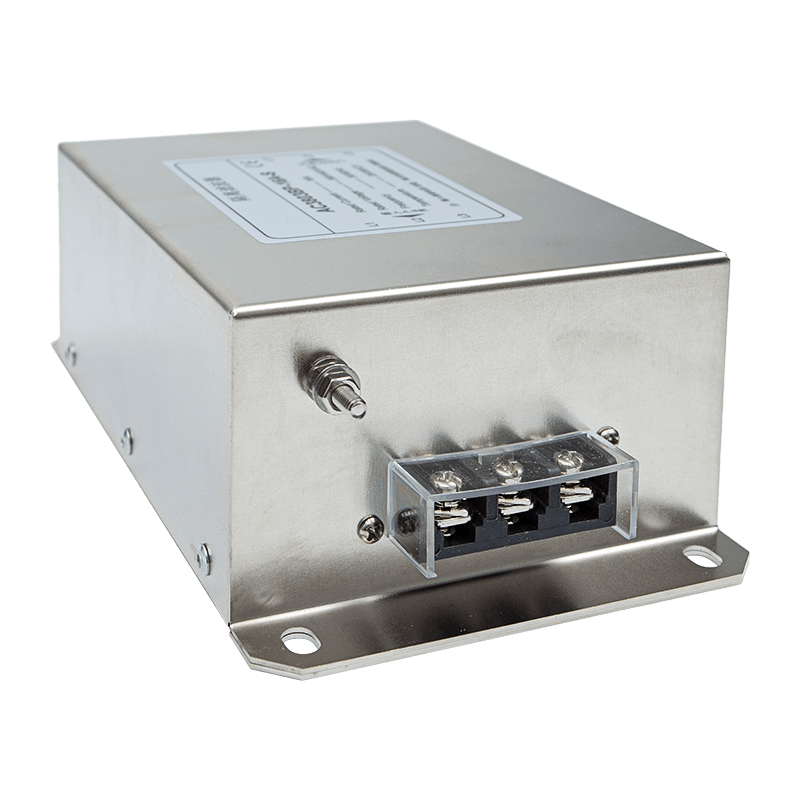

AC3803BP

Dedicated Isolation Filter for Frequency Converters

  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters
  • Dedicated Isolation Filter for Frequency Converters

Application

● The power filter is suitable for three-phase three-wire power carrier with servo, inverter or large driver,not only can it effectively filter out the impact of interference on the power line on the power carrier,and it can isolate the carrier signal,it has secondary filtering effect.

● Power supply filter mounted on the outside of the carrier,used to cut off and isolate the interference of inverters, servo drives or large drives, etc. on power carriers.

● Where there is load, it is necessary to connect the power filter in series,to solve the problems of over-voltage, over-current, overload, heating, misoperation and rejection of frequency converter caused by harmonics and surges in power grid.

● Suitable for domestic and foreign different brands of inverter, servo, industrial drive system supporting use.

Technical Data

Rated Voltage

380/440VAC

Operating Frequency

50/60Hz

Rated Current:

5~250A

Filter Range

10KHz~30MHz

Hi-pot Test

2250VDC, 2 sec (Line to Line)

2700VDC, 2 sec (Line to Ground)

Climatic Category

25/085/21 (-25°C to +85°C)

Overload Capability

4x rated current at switch on,

1.5x rated current for 1minutes, once per hour

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
