Features
● All stainless steel design, compact size, lightweight, and easy to install.
● The sensor is a diffused silicon pressure sensor with a 316L stainless steel diaphragm.
● After undergoing temperature compensation and aging screening, its performance is stable and reliable.
● The circuit features multiple layers of protection and high reliability, meeting EMC requirements.
● High precision, high stability.
Application areas
● Petroleum, chemical, and power industries
● Urban water supply, hydrological exploration, geology
● Industries such as fluid pressure detection and control

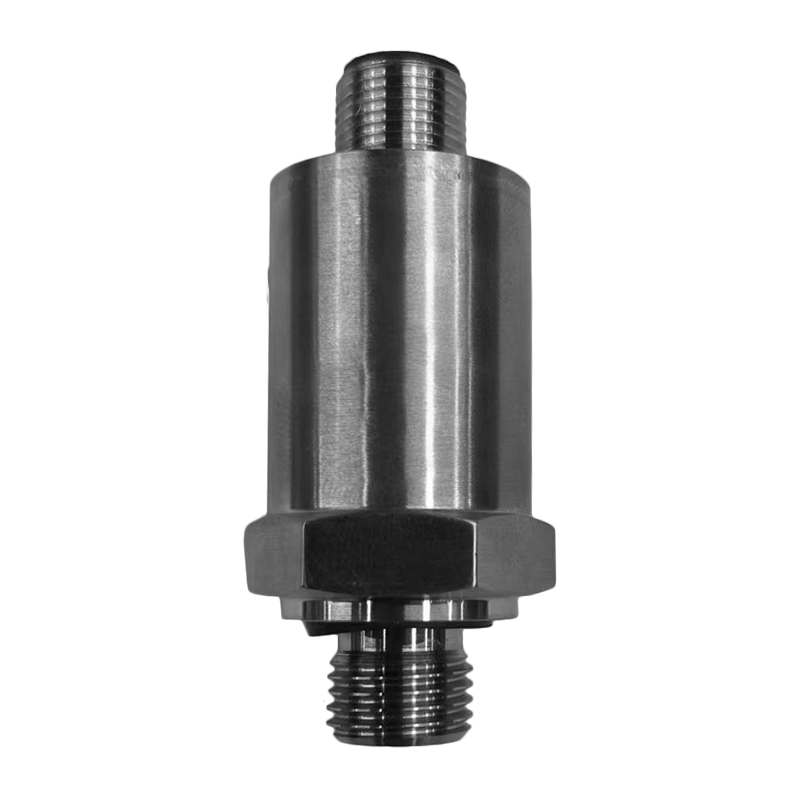

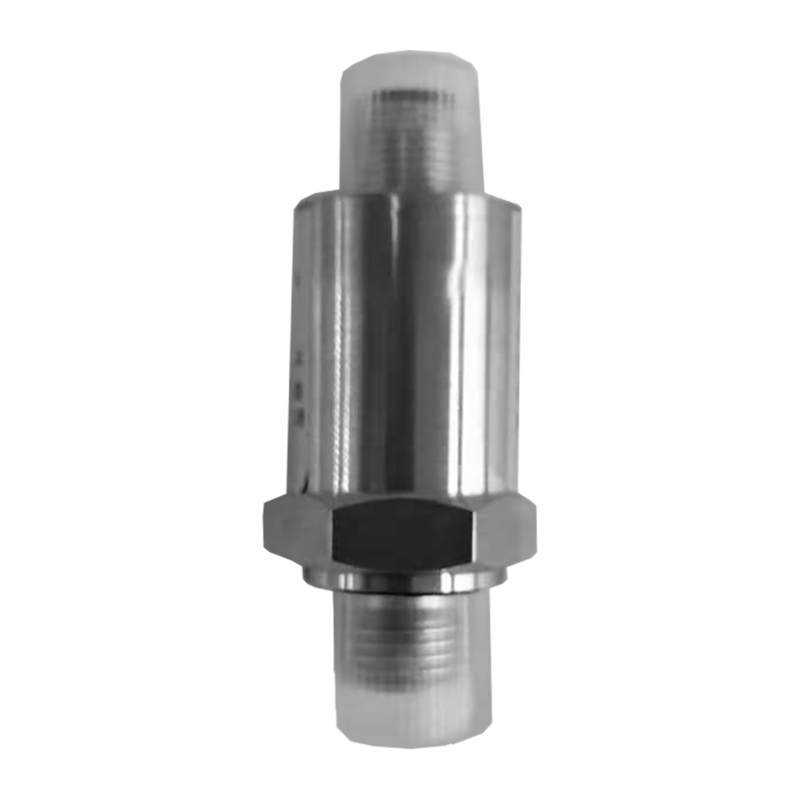

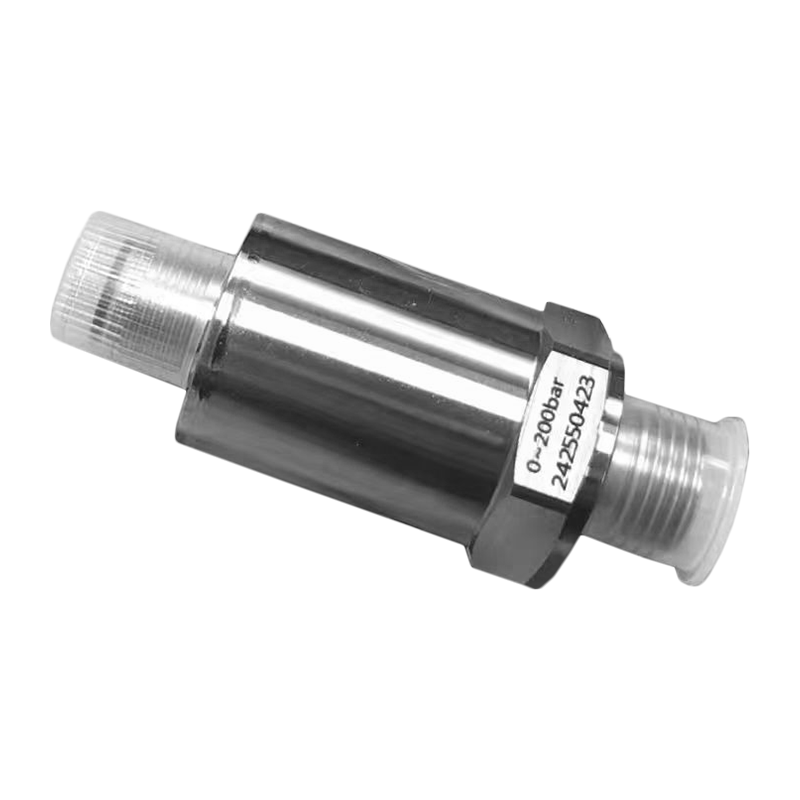

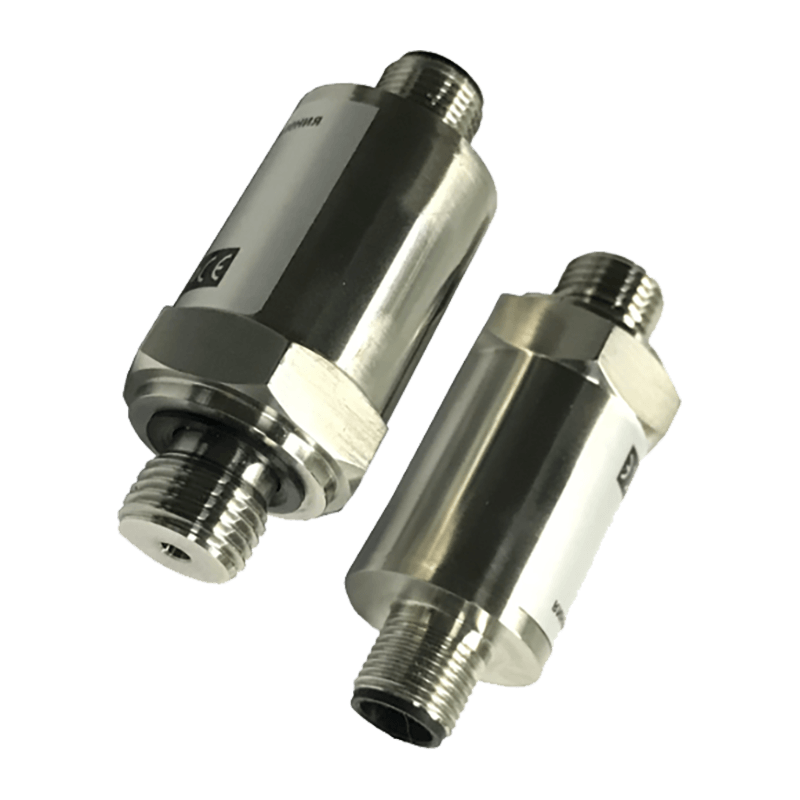

Product overview
The AI-TS piezoresistive pressure transmitter, a compact model, is a small-sized, highly stable pressure transmitter developed and manufactured by our company. It utilizes a highly stable and reliable piezoresistive pressure sensor and high-performance dedicated transmitter circuitry, resulting in stable and reliable overall performance. It offers multiple pressure ranges and signal output methods, along with a variety of connectors and pressure interfaces to choose from.

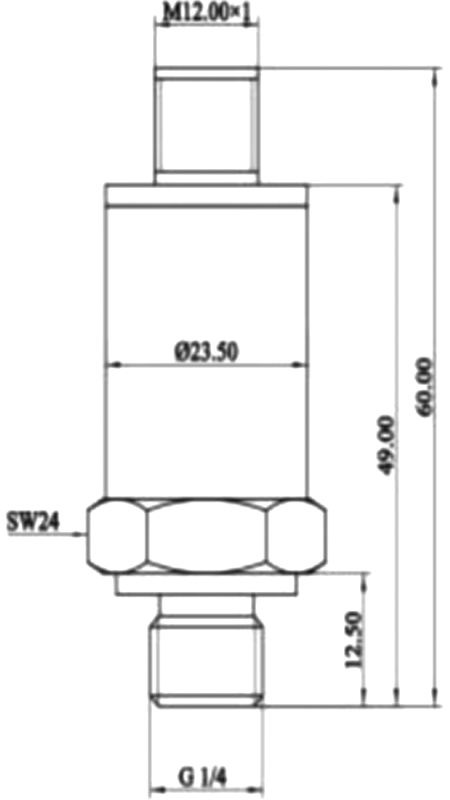

External structure: (unit: mm)
 |

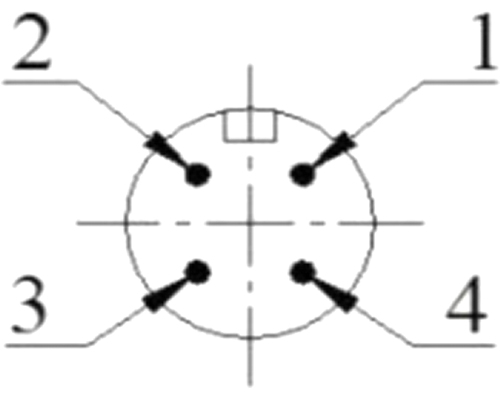

Electrical connection M12*1
|
|
Technical parameters:
|
Pressure parameters
|
|
Range
|
0MPa~10MPa┅40MPa
|
|
Overload
|
2 times full scale
|
|
Type of pressure
|
Gauge pressure, absolute pressure, sealed gauge pressure
|
|
Electrical parameters
|
|
Output type
|
Current type
|
Voltage type
|
|
Power supply
|
6.5~32V DC
|
5V DC / 24V
|
|
Output signal
|
4mA～20mA DC (two-wire system)
|
0.5V~4.5V / 0~10V DC (three-wire system)
|
|
Load resistor
|
≤（U-9）/0.02
|
≥10k
|
|
Insulation resistance
|
100MΩ, 100V DC
|
|
Structural parameters
|
|
Enclosure
|
Stainless steel
|
|
Protection level
|
IP65
|
|
Environmental conditions
|
|
Media suitability
|
Various media that do not corrode stainless steel
|
|
Compensation temperature
|
-10℃~80℃
|
|
Operating temperature
|
-30℃~+80℃
|
|
Storage temperature
|
-40℃~125℃
|
|
Performance indicators
|
|
Accuracy
|
±0.5%FS (Maximum)
|
±0.25%FS (Minimum)
|
|
Zero-point temperature coefficient
|
0.03%FS/℃(≤ 100kPa); 0.02%FS/℃(＞100kPa)
|
|
Full-scale temperature coefficient
|
0.03%FS/℃(≤ 100kPa); 0.02%FS/℃(＞100kPa)
|
|
Long-term stability
|
±0.3%FS/year (maximum)
|
