Product Introduction
High Definition- Power Line Communication KS802N is an industrial-grade, high-bandwidth, long-distance transmission power carrier communication device with excellent performance,based on IEEE P1901, using OFDM modulation and demodulation technology,industrial-grade bandwidth power line carrier communication equipment compliant with the European Union's EN-50561 standard specification.HD-PLC utilize existing power lines or slip touch cord as the information transmission medium for high-speed, long-distance data transmission.
It is characterized by high communication rate, bi-directional transparent transmission, good transmission stability, strong scalability and strong anti-interference.
HD-PLC KS802N carrier rate physical layer bandwidth up to 1000Mbps，hundred megabytes of data layer bandwidth，normal power line transmission distance is 300 meter，conforms to HomePlug AV standard，supports ethernet data communication via power line carrier.Built-in algorithms，no need to set up master-slave，self-bring route，automatic networking；Flexible networking，supports bus, star, tree, and hybrid network topologies structure.Built-in LDPC error correction codec，AES-128bit data encryption，fully transparent data transmission，supports hot-swapping，plug-and-play.

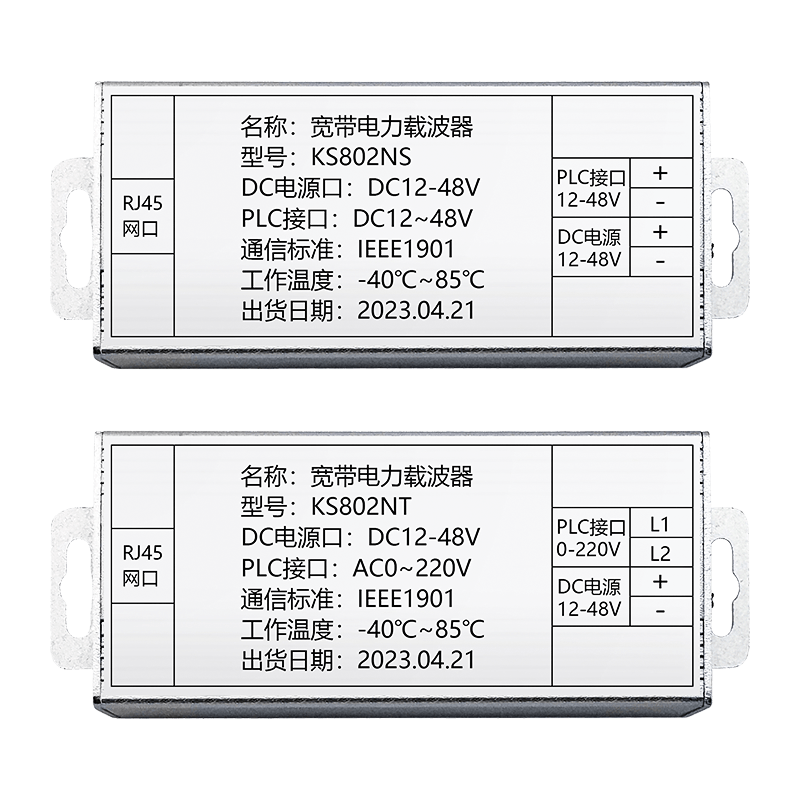

According to the different ways of power supply，PLC KS802N is divided into general-purpose type KS802NT and DC type KS802NS.General-purpose type KS802NT requires DC power supply，the scope of power supply is DC12-48V，suitable for voltage AC 0-220V、DC 0-400V carrier communications over power lines，PLC channel port does not distinguish between phase sequence or positive and negative polarity.DC type KS802NS is suitable for DC 12-48V power line carrier communication，PLC channel port supports on-line power pickup, and the power port does not require a separate power supply.

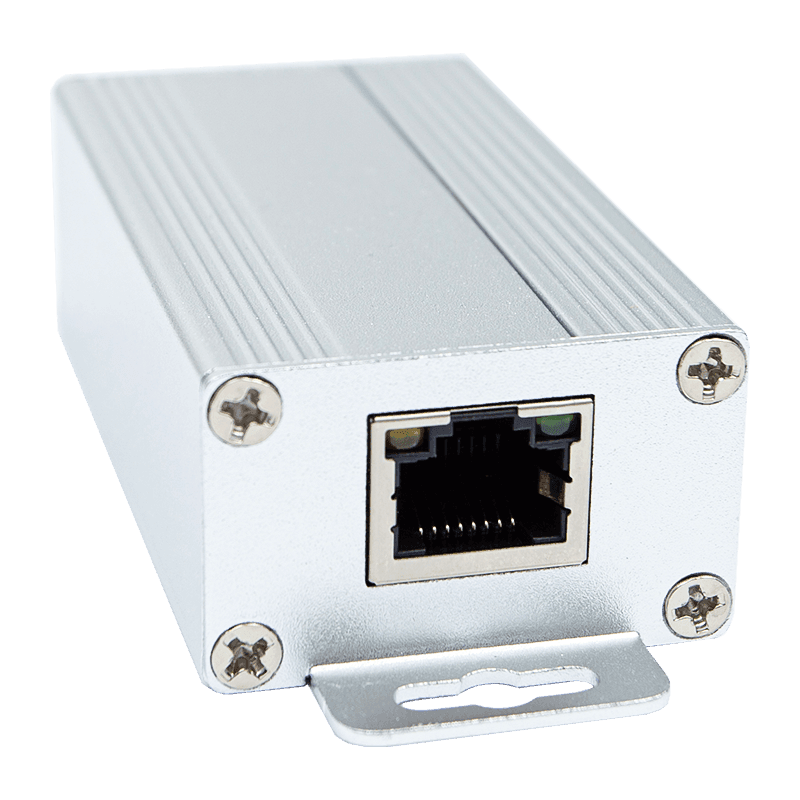

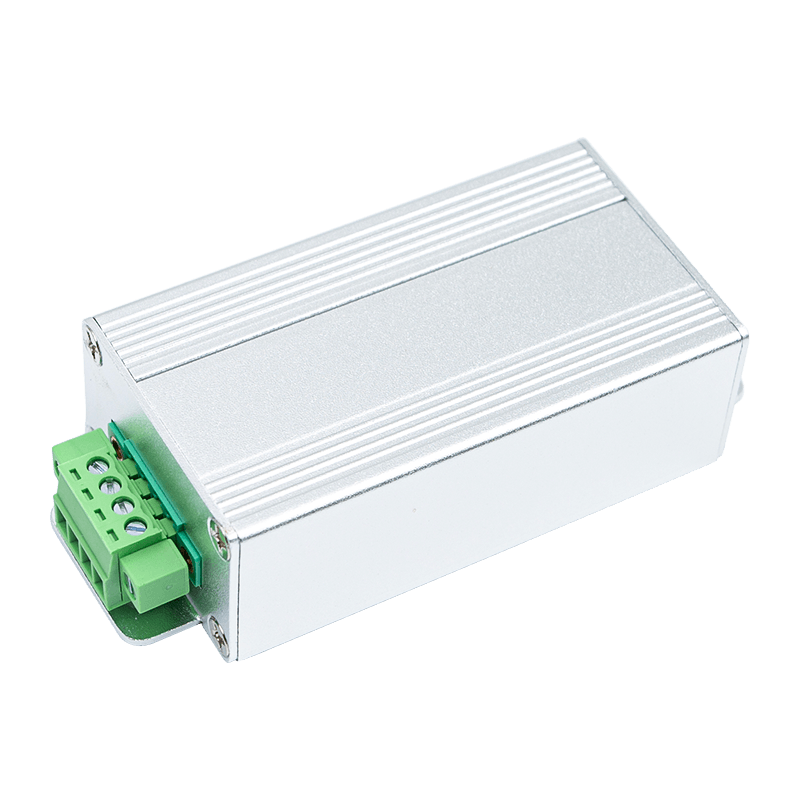

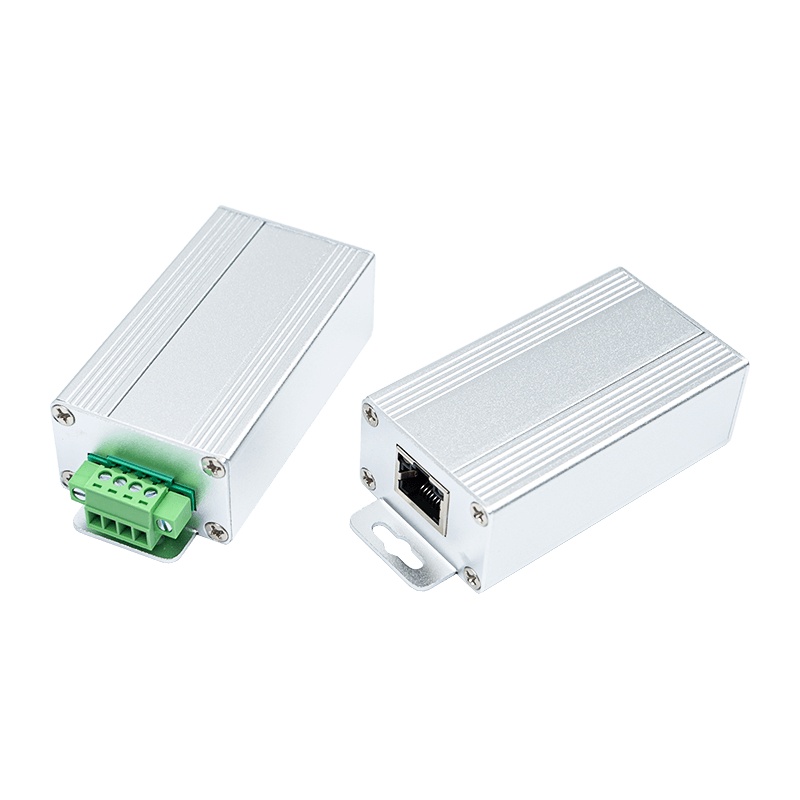

HD-PLC KS802N industrial standards，ultra-small size，the length, width and height is 92*40*25mm.Products have been widely used in various industries，including inspection robots, pipeline robots, underwater robots, intelligent charging piles, intelligent street lighting, intelligent traffic monitoring and other fields.
