Product Features
● Employing a microelectromechanical system (MEMS) flow sensing chip, the sensor features high precision, high sensitivity, and strong anti-interference capabilities.
● Zero-point stability of the sensor.
● It has high accuracy and good repeatability within its measurement range .
● Standard mechanical interface, easy to install .
● RS485 communication output, standard MODBUS RTU protocol .

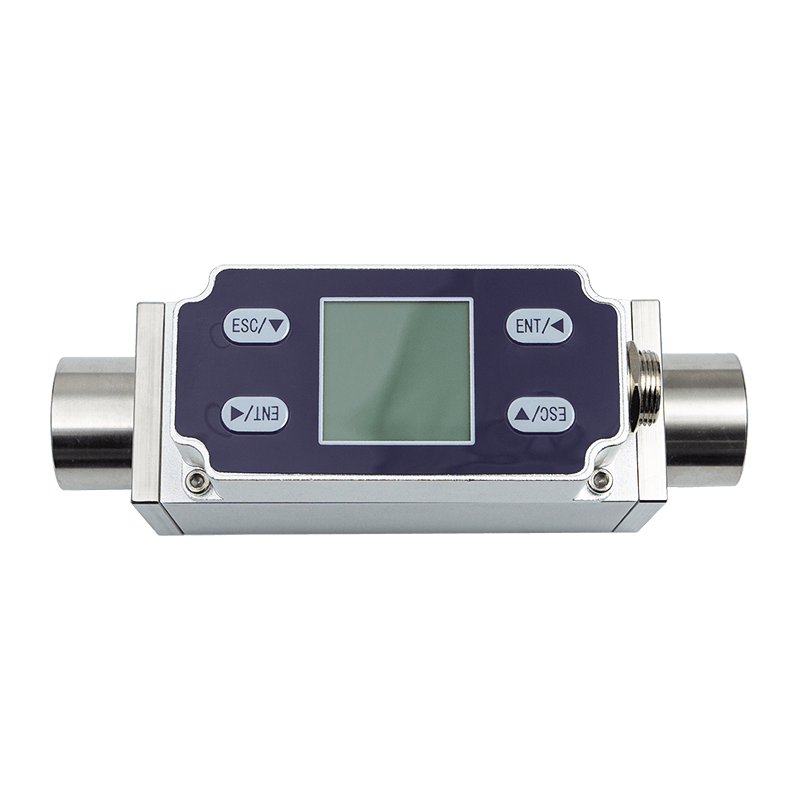

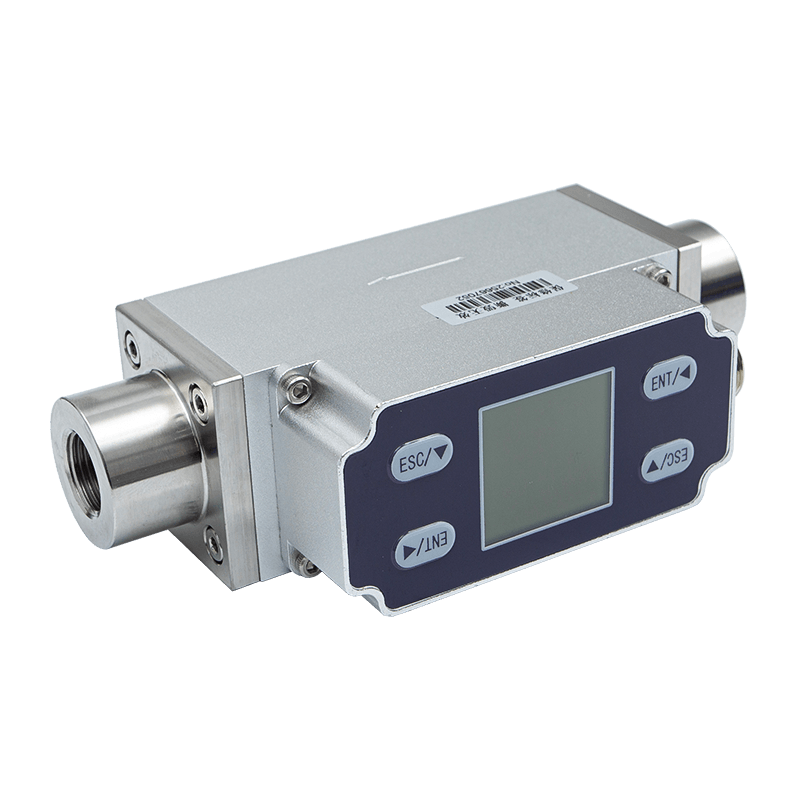

● The LCD displays instantaneous and cumulative flow rates, which are clear, intuitive, and easy to read.
● You can choose between a 4~20mA standard current signal output or a 1~5V/0-10V/0-5V voltage output.
● Intrinsically safe explosion-proof certification.
Product Introduction

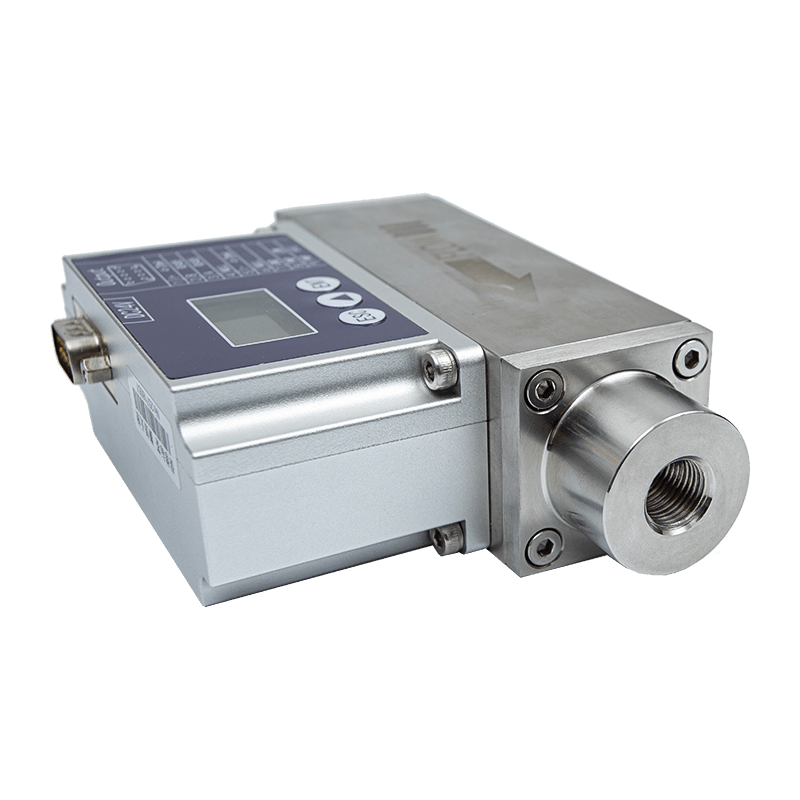

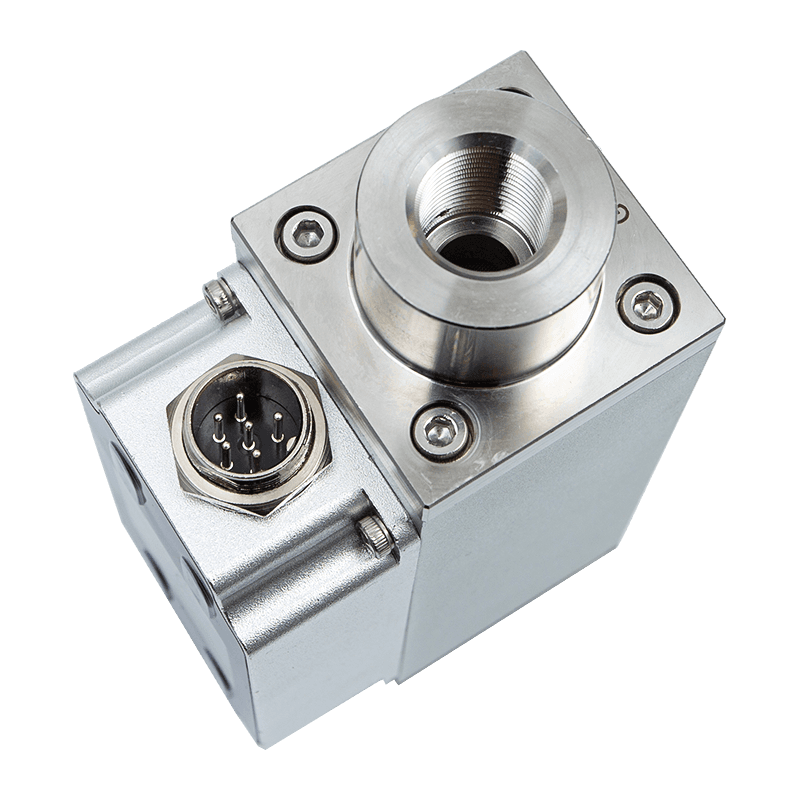

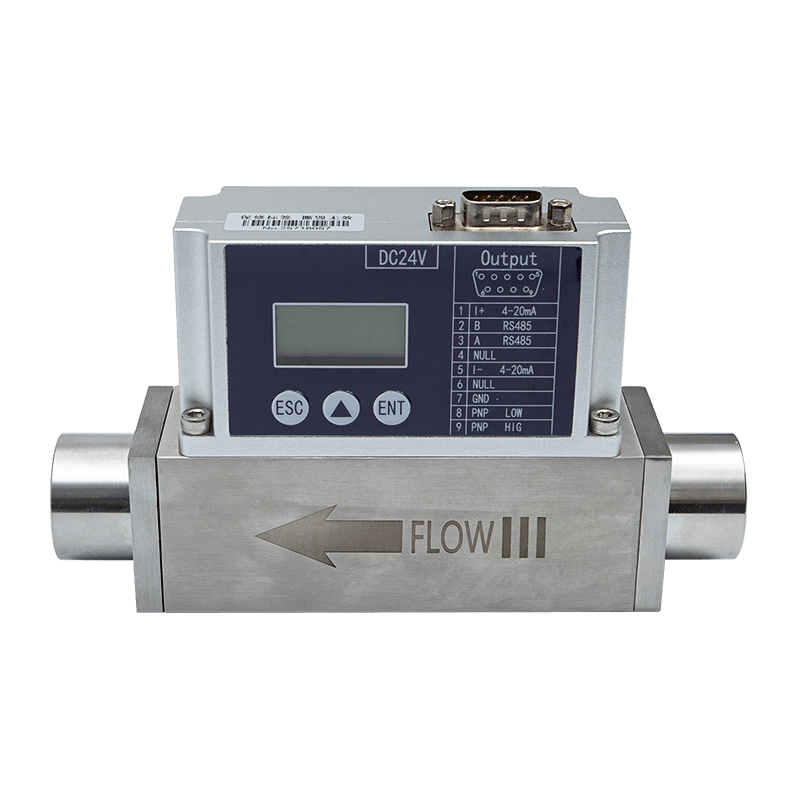

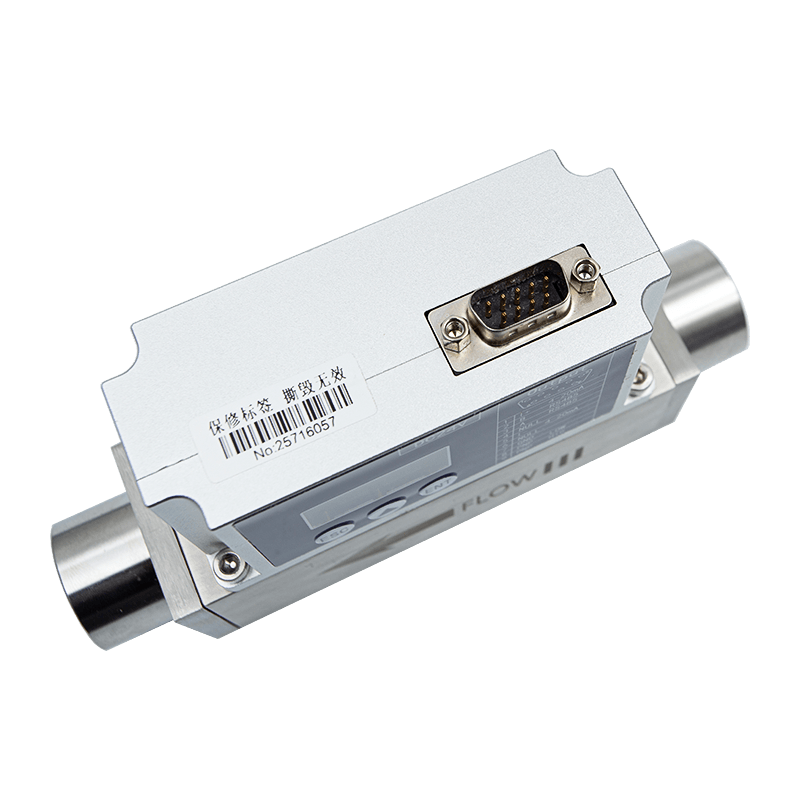

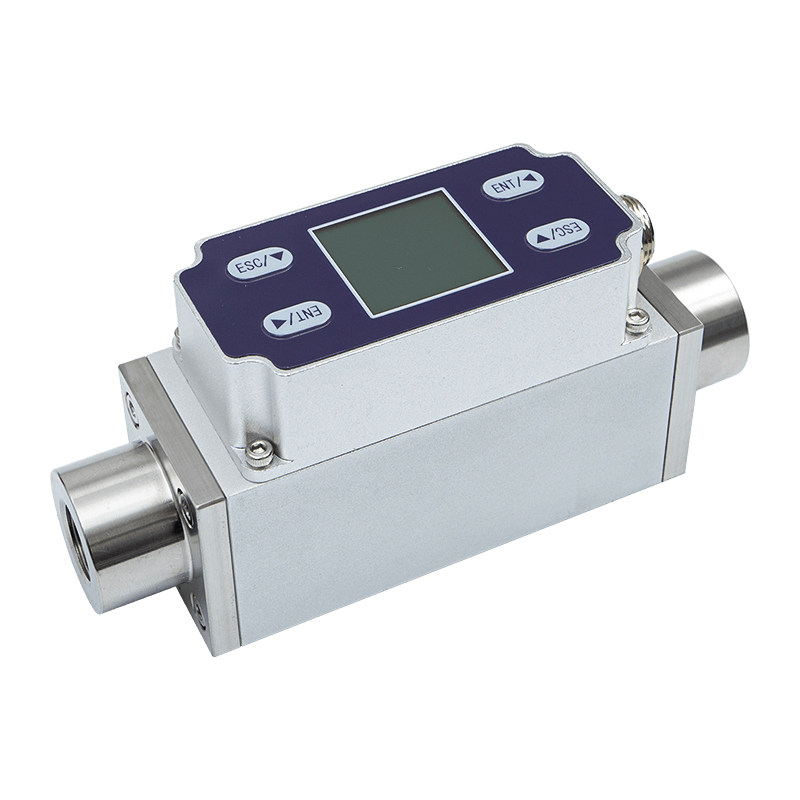

The AI-FM high-precision thermal gas mass flow meter is a high-precision thermal gas flow sensor designed and developed using an advanced microelectromechanical system (MEMS) flow sensing chip. This high-precision flow meter features higher accuracy, higher sensitivity, and strong anti-interference capabilities, making it suitable for measuring and controlling various small-flow-rate clean gases. This flow meter is intrinsically safe and explosion-proof, suitable for environments requiring high accuracy and intrinsic safety. It is cost-effective, easy to install, and requires no temperature or pressure compensation, making it a viable replacement for traditional volumetric or differential pressure flow meters .
|
working power supply
|
DC24V/2.5W
|
Accuracy (%)
|
±(1.0 FS ) %
|
|
medium temperature
|
-10~55 ℃
|
humidity
|
<95%RH (no frost, no ice , no condensation )
|
|
Work pressure
|
≤ 1.5 MPa
(3MPA can be customized)
|
Response time (ms)
|
50ms
|
|
Output method
|
4-20mA or 1~5V, 0-5V/0-10V selectable .
|
Mechanical connection
|
PT1/2 or G1/4 internal threads are available; other thread interfaces can be customized.
|
|
show
|
Instantaneous traffic, cumulative traffic
|
Communication methods
|
RS485 (Modbus RS tu protocol )
|
|
Range ratio
|
1:100
|
preheating time
|
3-4 minutes (preheating is recommended for best results)
|
|
Selectable standard temperature conditions
|
0°, 20°, 25° are user-adjustable, with 25° as the default.
|
Selectable gas
type
|
Air, N2, O2, CH4, Ar, CO2, He, H2 , C3H8 (other gases can be obtained by contacting the manufacturer)
|
|
Protection level
|
IP40
|
Other signal outputs
|
PNP output can be selected
|
|
Pipe diameter
|
DN8 and DN15 are available.
|
Storage temperature
|
-10~65℃
|
were measured at 25 ℃, 101.32 kPa, and in dry air .
Minimum measurable flow rate: 0.3 N mL / min
Maximum measurable flow rate: 1000 NL/ min
Note: Do not exceed the measurement range, as this may damage the sensor.
