Product Features
● Employing a microelectromechanical system (MEMS) flow sensing chip, the sensor features high precision, high sensitivity, and strong anti-interference capabilities.
● Zero-point stability of the sensor.
● It has high accuracy and good repeatability within its measurement range .
● Standard mechanical interface, easy to install .
● RS485 communication output, standard MODBUS RTU protocol .

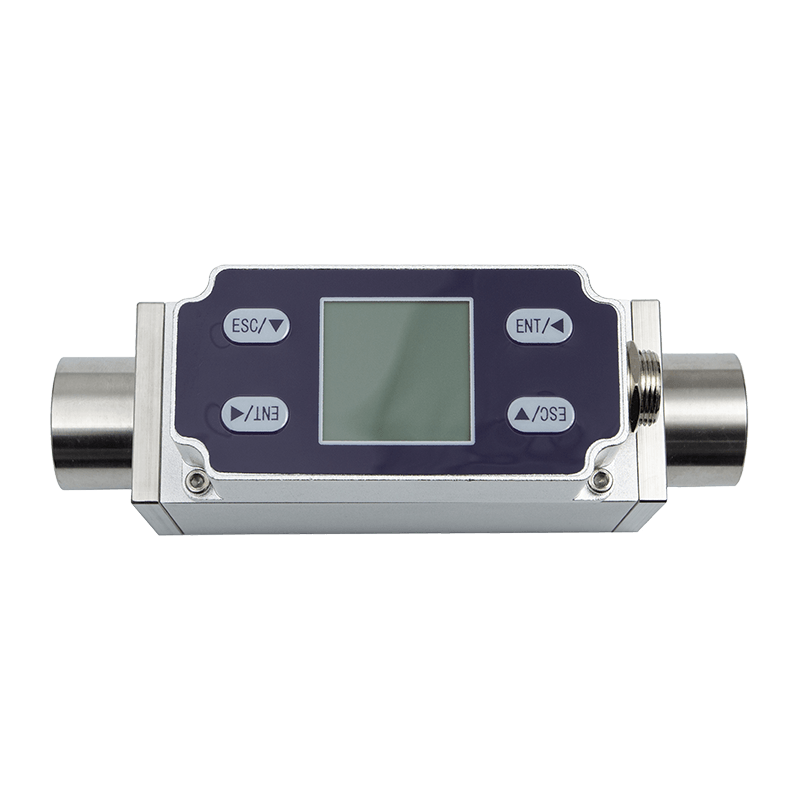

● The LCD displays instantaneous and cumulative flow rates, which are clear, intuitive, and easy to read.
● 4~20mA standard current signal output and one PNP output (PNP pulse output or 0-5V/0-10V output can be customized).
● Intrinsically safe explosion-proof certification.
Product Introduction

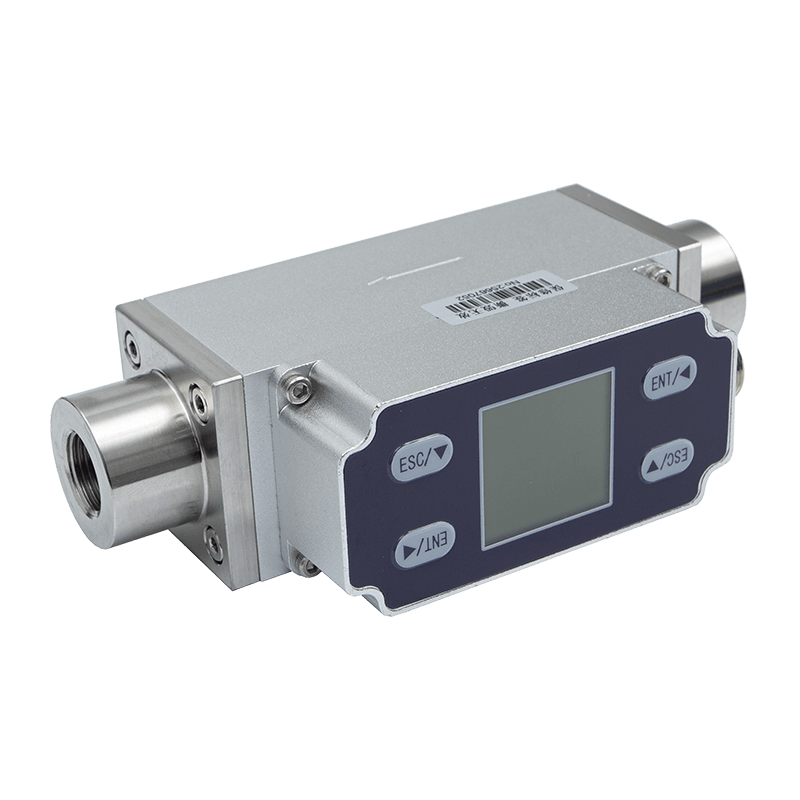

The AI-FK explosion-proof thermal gas mass flow meter is an explosion-proof thermal gas flow sensor designed and developed using an advanced microelectromechanical system (MEMS) flow sensing chip. This explosion-proof flow meter features high accuracy, high sensitivity, and strong anti-interference capabilities, making it suitable for measuring and controlling various small-flow-rate clean gases. Designed according to explosion-proof standards, this flow meter is suitable for various harsh environments, offering low cost, easy installation, and no need for temperature and pressure compensation. It can replace traditional volumetric or differential pressure flow meters.
Technical Parameters
|
Working power supply
|
DC24V/2.5W
|
Accuracy (%)
|
±(1.5FS)
|
|
Medium temperature
|
-10~ 50 ℃
|
Zero Drift
|
± 20m V
|
|
Work pressure
|
≤1.6 MPa ( default ), customizable with integrated pressure measurement and display for higher pressure ratings .
|

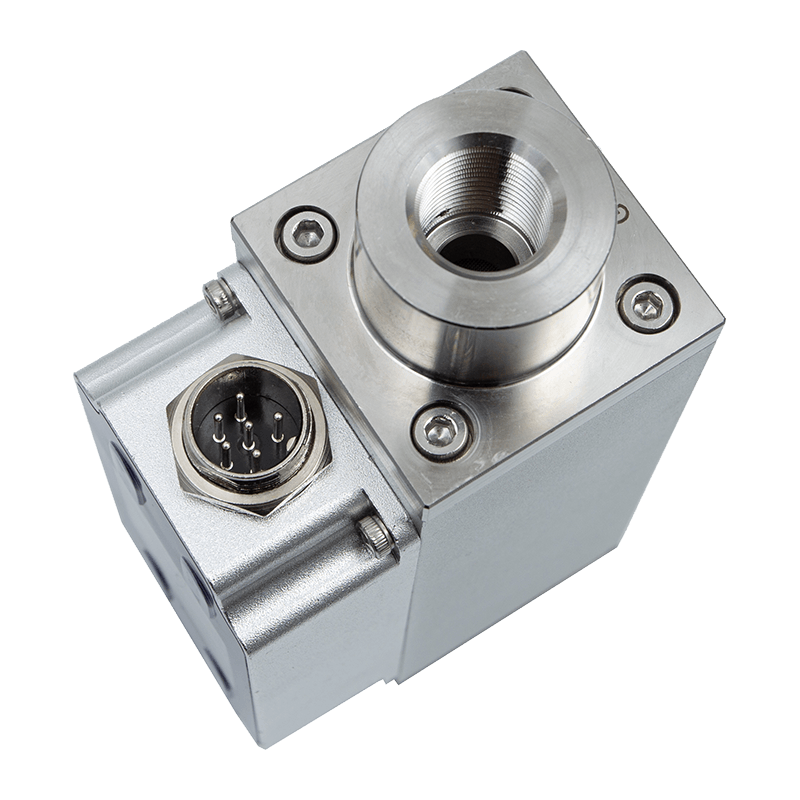

Mechanical connection
|
BSPT internal thread and G internal thread are optional
See mechanical interface connection dimensions for details.
|
|
Output method
|
4-20mA
|
Communication methods
|
RS485 (Modbus RS tu protocol )
|
|
Show
|
Instantaneous traffic, cumulative traffic
|
Response time (ms)
|
50-1000 ms
|
|
Storage temperature
|
-10~65℃
|
humidity
|
<95%RH (no frost, no ice)
|
Were measured at 25 ℃, 101.32 kPa, and in dry air .
Minimum measurable flow rate: 0.3 NL/ min
Maximum measurable flow rate: 3000 NL/ min
Customizable with temperature and pressure measurement functions
