High-speed Power Line Communication (H-PLC)
KS810NS

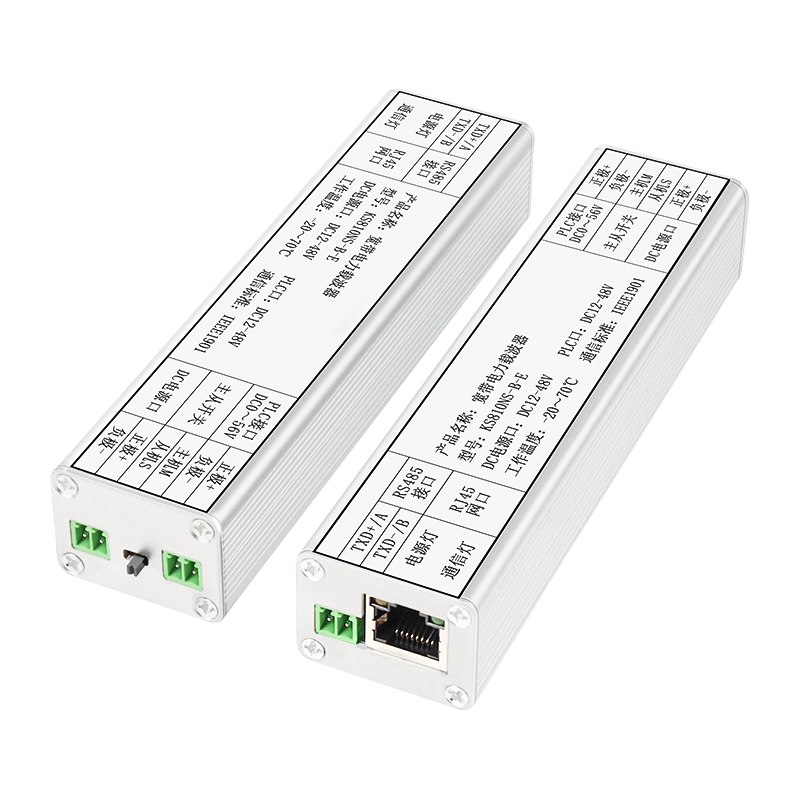

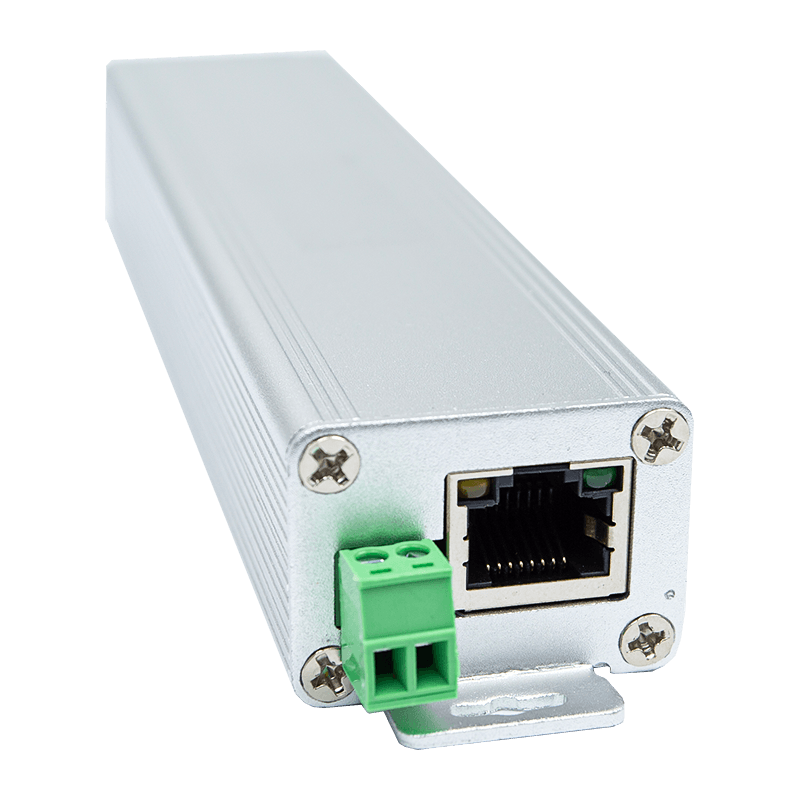

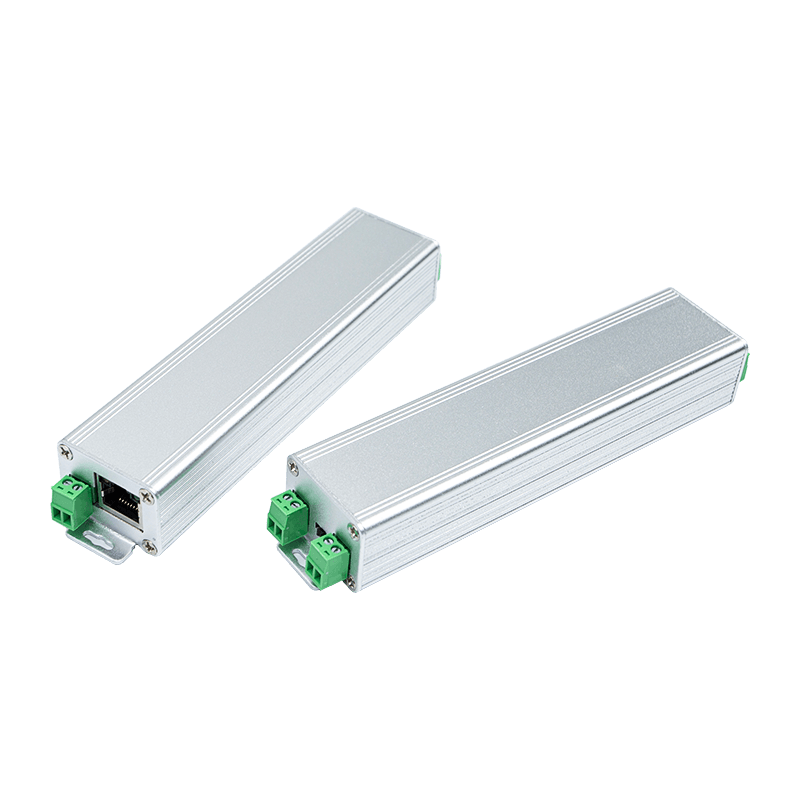

DC Broadband Power Line Communication

  • DC Broadband Power Line Communication
  • DC Broadband Power Line Communication
  • DC Broadband Power Line Communication
  • DC Broadband Power Line Communication
  • DC Broadband Power Line Communication
  • DC Broadband Power Line Communication
  • DC Broadband Power Line Communication
  • DC Broadband Power Line Communication
  • DC Broadband Power Line Communication
  • DC Broadband Power Line Communication

Carrier module KS810N is divided into DC type KS810NS and general type KS810NT,supports bus, star, tree, and hybrid network topological structure.

DC type KS810NS is suitable for DC12-48V carrier communication on power lines,according to the power line with load is divided into two types of wiring, with load and without load dedicated line.

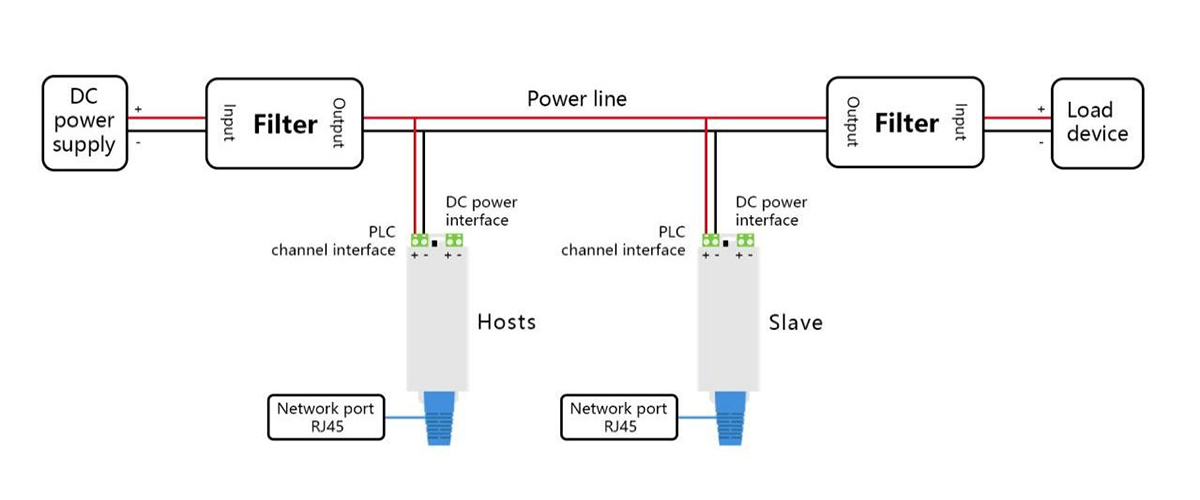

1. DC type KS810NS power line with load,need to be used with filter.The power supply port is suspended and not connected,PLC channel port is connected in parallel to the DC power line,be careful to distinguish between positive and negative poles.Reference wiring schematic:

Figure 1

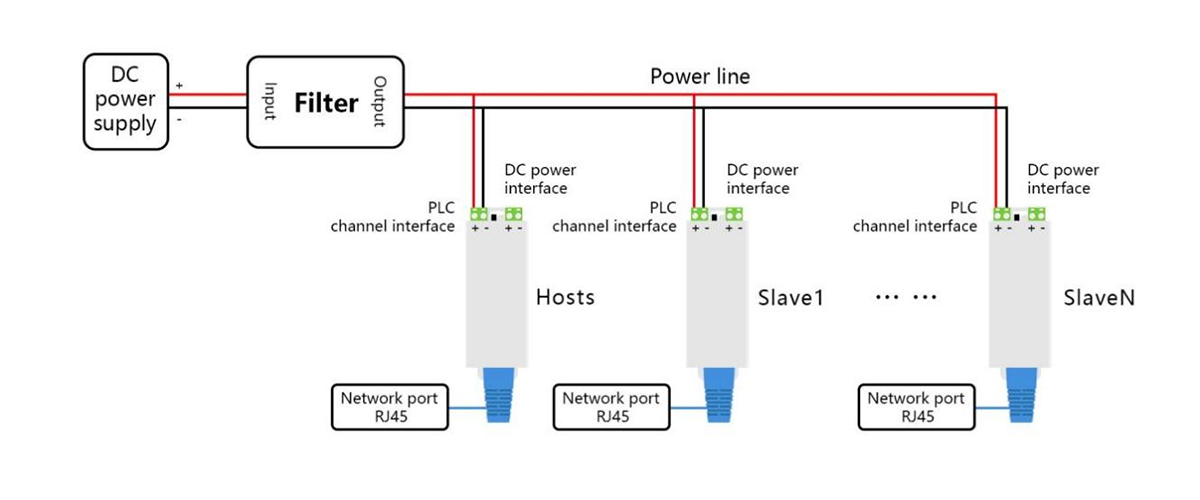

2. DC type KS810NS power lines without loads go on dedicated lines,the power port of the carrier on the power supply side is connected to a DC12-48V power supply,other carrier power supply port is suspended and not connected,the channel ports of all carriers are connected in parallel to the DC power line,be careful to distinguish between positive and negative poles.Reference wiring schematic:

Figure 2

Technical data

Classification

Technical indicators

Power supply

DC 12-48V

PLC Signal port

NS type: DC12-48V

NT type: AC 0-220V or DC 0-400V

Any two-core cables, power line, slip contact cord, slip ring cables

Modulation type

OFDM modulation type

Carrier frequency

2~28 MHz

Ethernet bandwidth

10M/100Mbps self-adaption

Transmission distance

Ordinary power lines is 500 meter,coaxial cable 2 kilometer,class 10 relay up to 3-5 kilometre

RS485

Support Modbus RTU agreement,baud rate configurable 1200~115200bps

Data delay

Within 10ms

Packet loss probability

Less than 0.1‰

Overall power consumption

≤3W

Standard agreement

TCP/IP,UDP,Profinet,Home Plug,Home PlugAV,Modbus-TCP,

IEEE 802.3,IEEE 802.3U,IEEE 802.3ab,IEEE 1905.1,

IEEE 1900,IEEE 1901 etc

Way of encryption

AES-128bit

Multicast

Support IGMP multicast protocols,the maximum number of nodes is 128

Exterior dimensions

Size:160*35*26mm (L*W*H)

Weight:250g

Install:Earhook

Environmental requirement

Operating temperature:-40℃~85℃

Operating humidity:20%-95%(No condensation)

Storage temperature:-40℃~85℃

Working time

Industrial grade, supports 7*24 hours all-weather work
