Product Introduction
Integrated Power & Data over One Cable
It achieves synchronous 100Mbps data transmission and power delivery over a DC power line (utilizing any two-core conductors such as parallel wires, twisted pair, slip ring wires, or coaxial cable). Operating in a DC power environment below 56V, it supports point-to-point transmission distances up to 1000 meters. This eliminates the need for additional signal cables, enabling simple, plug-and-play installation.
Intelligent Networking, Flexible Topology
Featuring a master/slave (M/S) DIP switch for quick configuration, it supports one-to-one and one-to-many communication modes. Equipped with a built-in intelligent routing algorithm, it automatically constructs bus, star, tree, and hybrid networks for true plug-and-play smart networking.
Data Transparency & Rich Interfaces
Data Transparency: Built-in multiple network protocol stacks ensure complete data transparency without the need for protocol conversion.

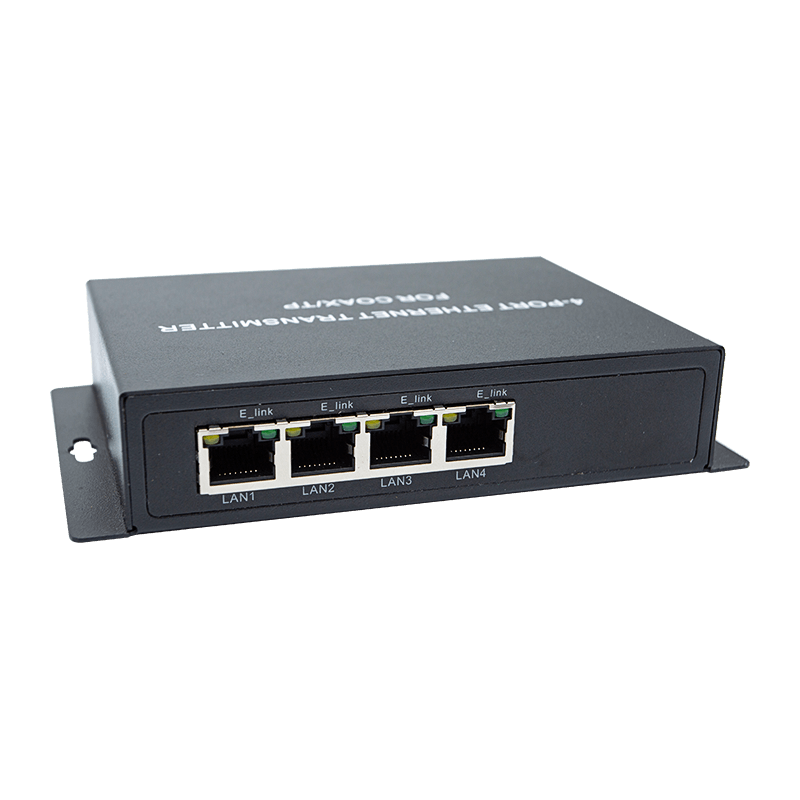

Rich Interfaces: Integrates 4 parallel Ethernet ports, allowing simultaneous connection of up to four network terminal devices.
Encryption & Security: Features encrypted data transmission to ensure communication stability and privacy security.
Industrial Grade, Stable & Reliable

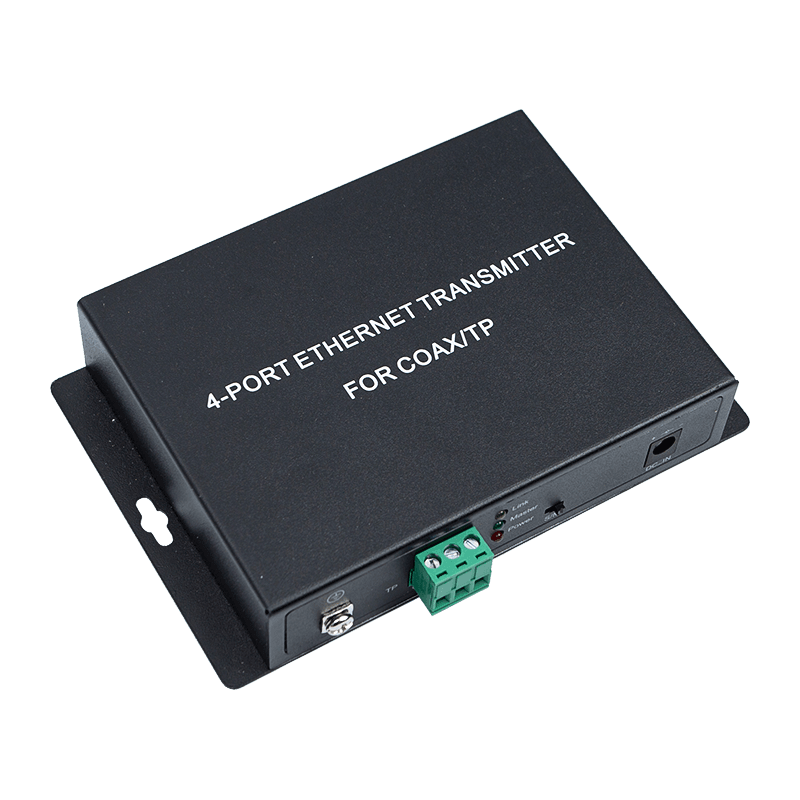

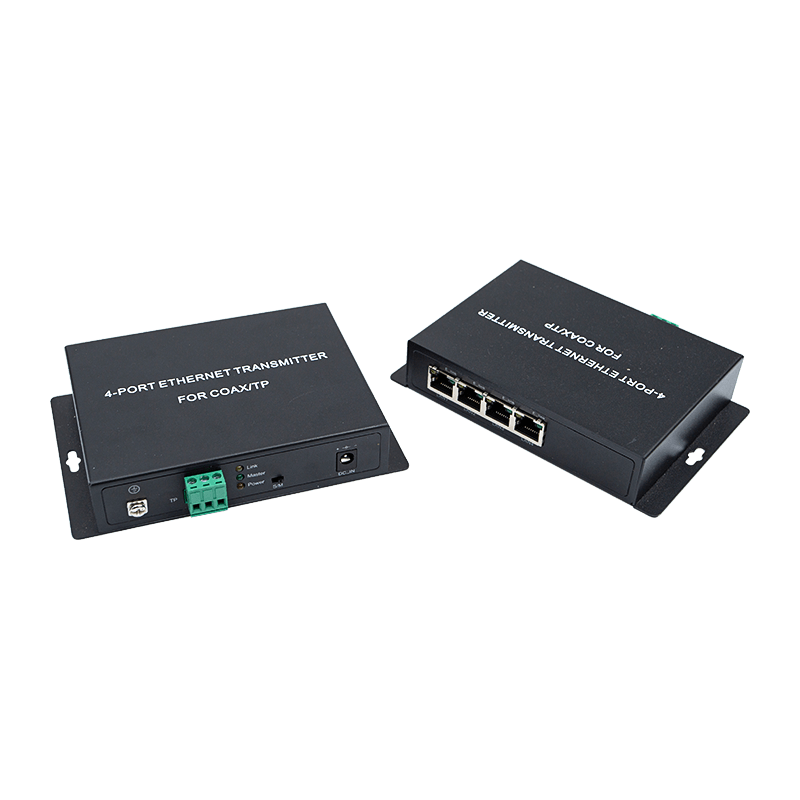

The KS704Q broadband PLC device operates within an extended temperature range of -40℃ to 85℃, complying with stringent industrial environmental standards. It offers strong anti-interference capability and high stability, ensuring reliable performance even in complex electromagnetic environments.
The KS704Q is ideal for industrial communication scenarios requiring long-distance transmission, multiple nodes, and high real-time performance, such as underwater robots, inspection robots, mine video surveillance, and industrial automation. Its design features easy lug mounting for straightforward installation.
