Product overview

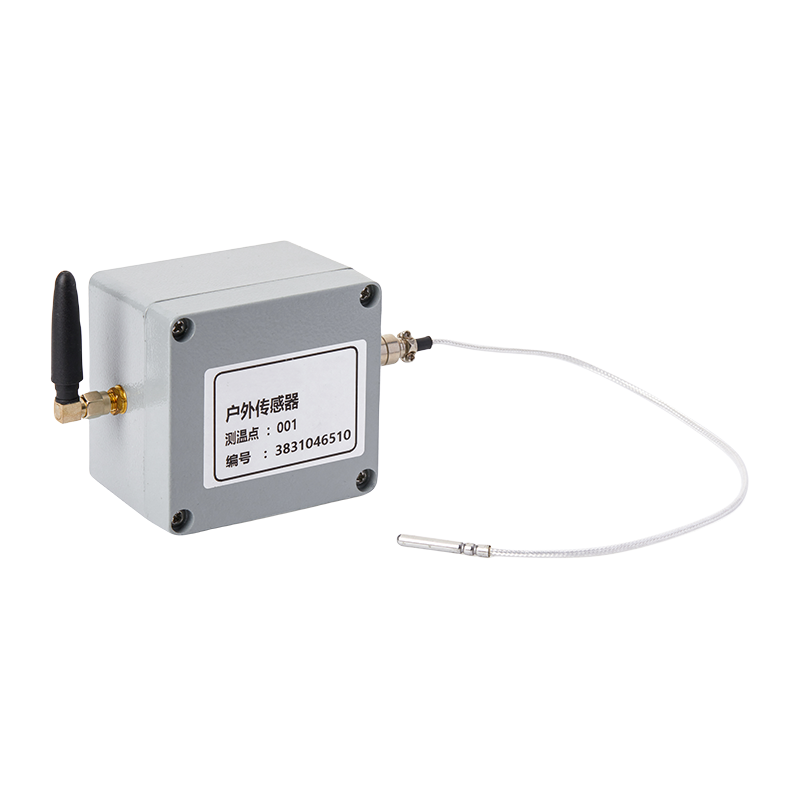

KS30T-LORA explosion-proof lead-wire wireless temperature sensor is a temperature sensor featuring ultra-low power consumption and high accuracy. It consists of a temperature sensor, signal modulation and amplification device, logic control circuit, wireless communication circuit, lithium battery, and antenna. This temperature sensor uses ultra-low power wireless communication to transmit the collected temperature data to the wireless temperature measurement host via a wireless network.
This temperature sensor is equipped with a single-lead type and features an explosion-proof design, making it suitable for harsh environments requiring explosion protection. It can perform real-time temperature monitoring at the measurement point. Currently, this product is widely used in many industries such as power, petroleum, chemical, mining, metallurgy, and cement.
Main technical parameters
|
Temperature measurement range
|
-40～+300℃
|
Wireless transmission distance
|
≤500 meters
|
|
Measurement accuracy
|
±1℃
|
Battery lifespan
|
5-8 years
|
|
Thermistor
|
PT1000
|
Installation method
|
Adsorption
|
|
Temperature sampling frequency
|
Default 10 seconds
|
Overall length
|
105mm
|
|
Communication methods
|
LORA
|
External dimensions
|
60mm*45mm*25mm
|
|
Wireless frequency
|
470-510MHz
|
|
Installation location
|
Outdoor isolating switches, wall-penetrating cable clamps, transformer inlet and outlet terminals, outdoor flexible copper busbar connections, and other components.
|
