Product Overview

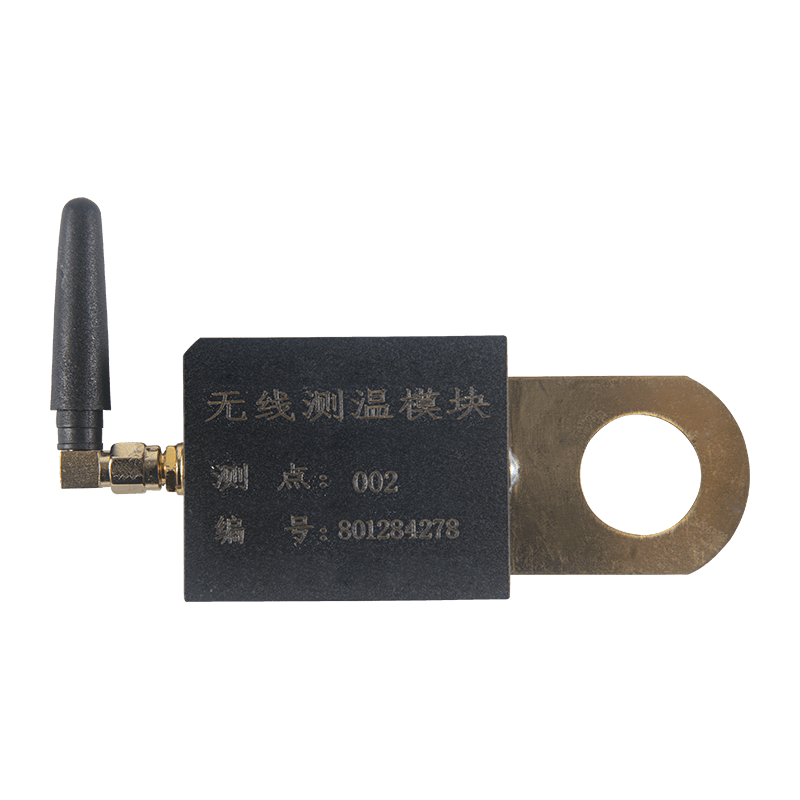

The KL-DS33YS copper-plate wireless temperature sensor is a temperature sensor featuring ultra-low power consumption, high accuracy, and wireless transmission. It consists of a temperature sensor, signal modulation and amplification device, logic control circuit, wireless communication circuit, lithium battery, and antenna. This sensor uses ultra-low power wireless communication to transmit the collected temperature data to the wireless temperature measurement host via a wireless network.
This temperature sensor features single-channel temperature detection and is directly mounted on a copper plate. It is primarily used to measure the temperature of the surface or contacts of high-voltage energized objects, such as industrial equipment, high-power motors, exposed contacts in high-voltage switchgear, busbar connections, outdoor disconnectors, and transformers.
Main Technical Parameters
|
Temperature measurement range
|
-40～+200℃
|
|
Measurement accuracy
|
±1℃
|
|
Thermistor
|
PT1000
|
|
Temperature sampling frequency
|
Default 10 seconds
|
|
Communication methods
|
LORA
|
|
wireless frequency
|
470-510MHz
|
|
Wireless transmission distance
|
≤800 meters
|
|
Battery lifespan
|
5-8 years
|
|
Installation method
|
Bolt fixing
|
|
General
|
105mm
|
|
External dimensions
|
60mm*45mm*25mm,
|
|
Protection level
|
IP68
|
|
Installation location
|
Outdoor isolating switches, wall-penetrating cable clamps, transformer inlet and outlet terminals, outdoor flexible copper busbar connections, and other similar components.
|
