Product Overview
Temperature monitoring points for high-voltage electrical equipment are typically located in environments with high voltage, high current, and strong magnetic fields. Due to the stringent conditions such as strong electromagnetic noise, high-voltage insulation, and space constraints, real-time temperature monitoring of high-voltage electrical equipment becomes extremely difficult.
Our company's independently developed wireless temperature monitoring system is a real-time temperature measurement system that uses radio waves for signal transmission. This system mounts a sensor on the device being measured, and the sensor is connected to the receiving host via a wireless network. This system fundamentally overcomes the challenge of real-time online monitoring of the operating temperature of high-voltage equipment contacts.

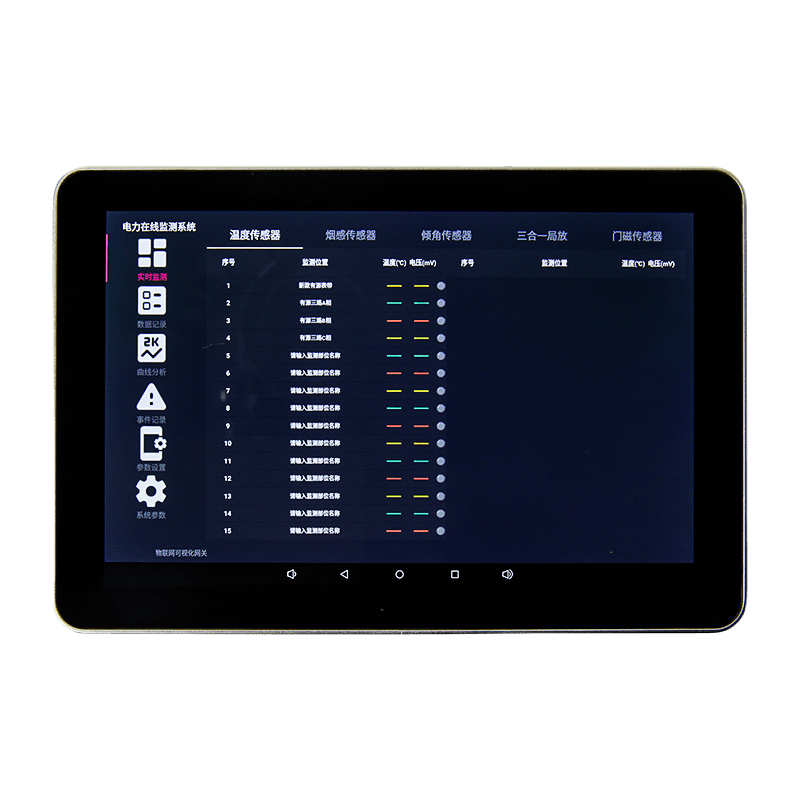

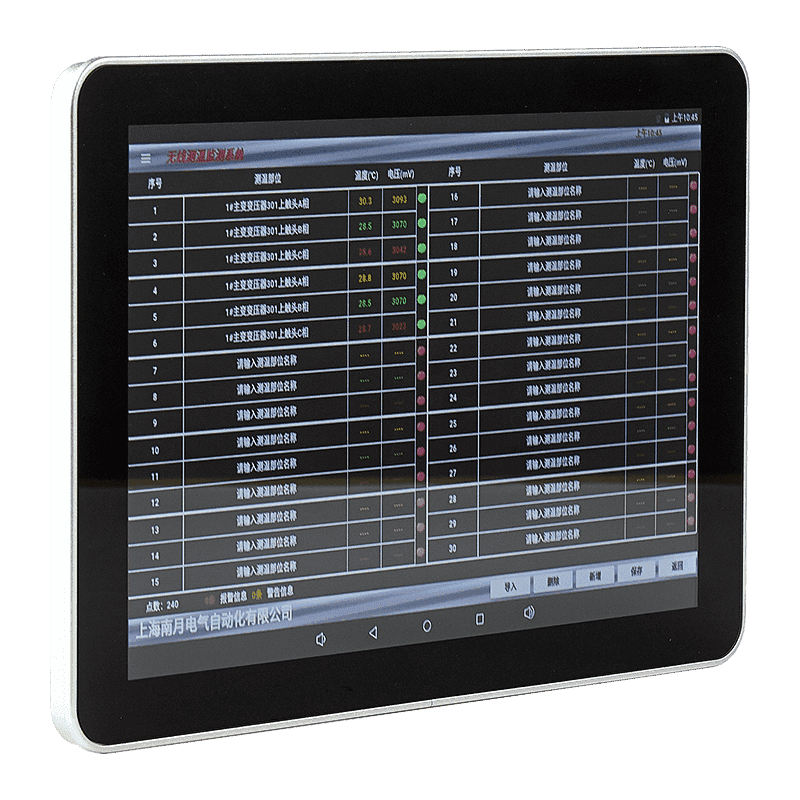

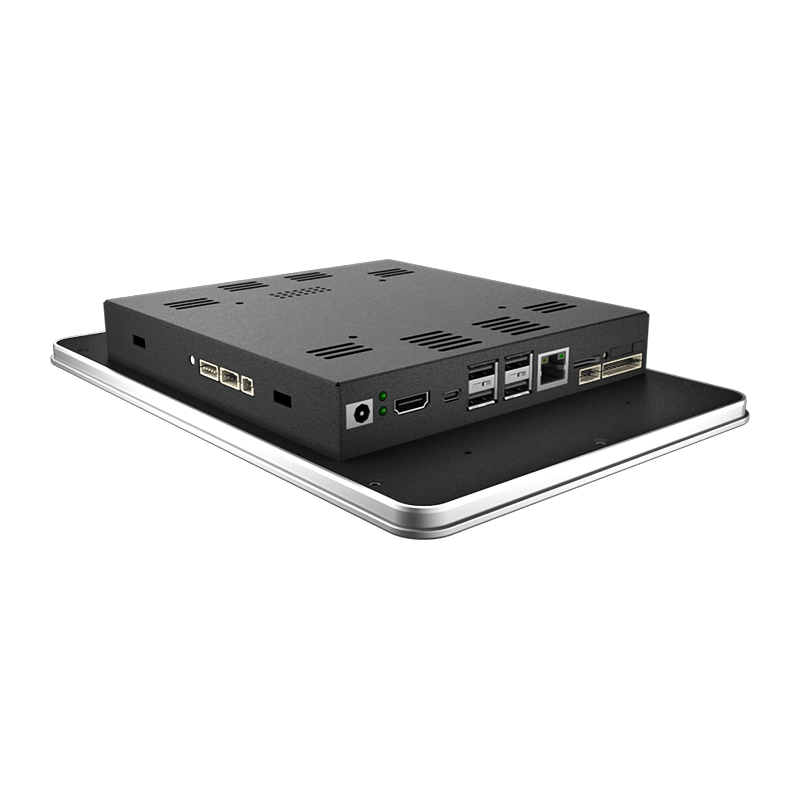

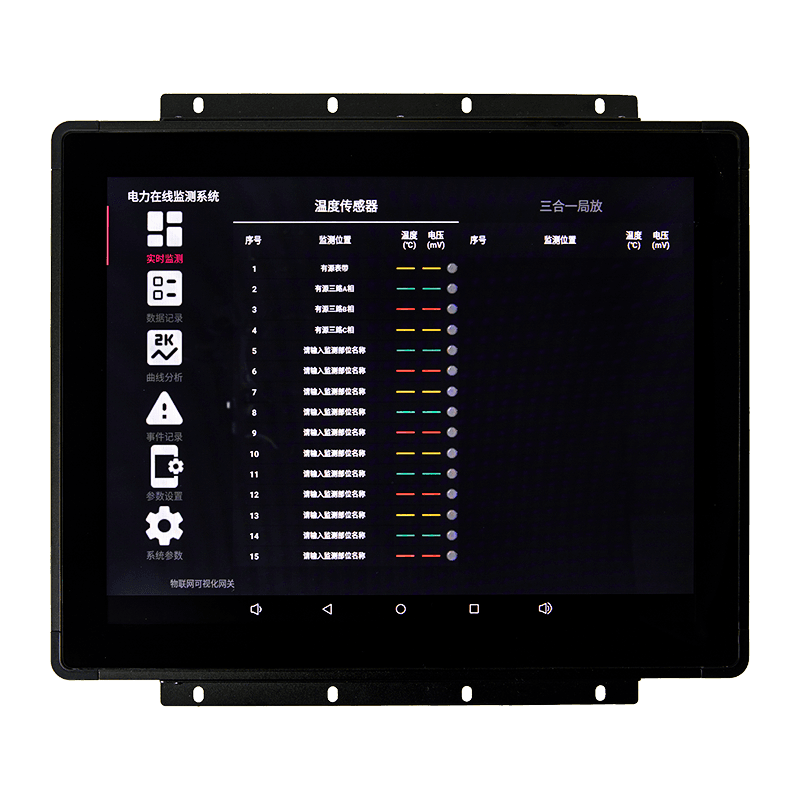

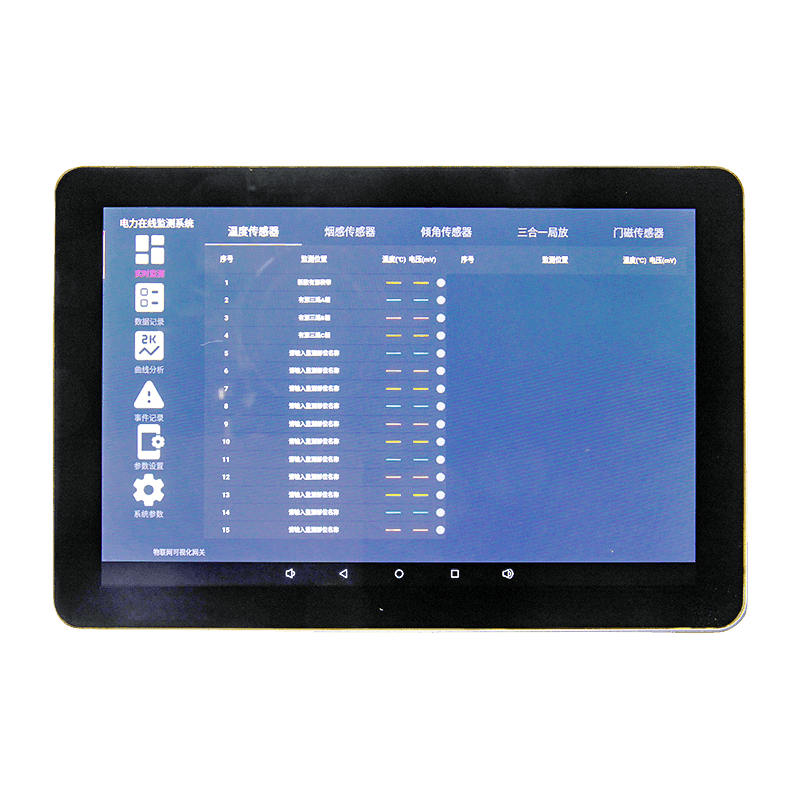

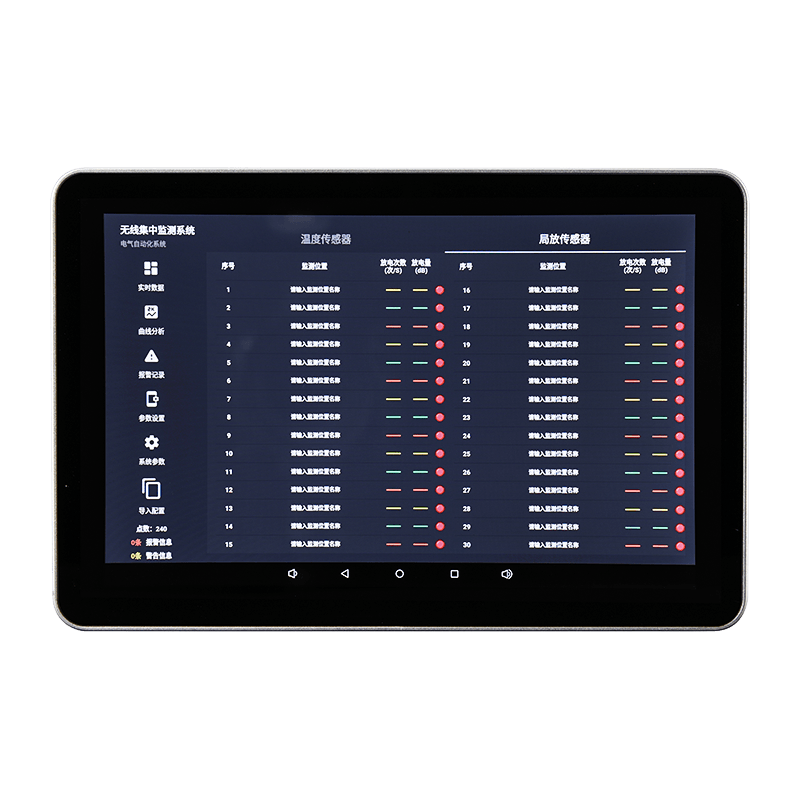

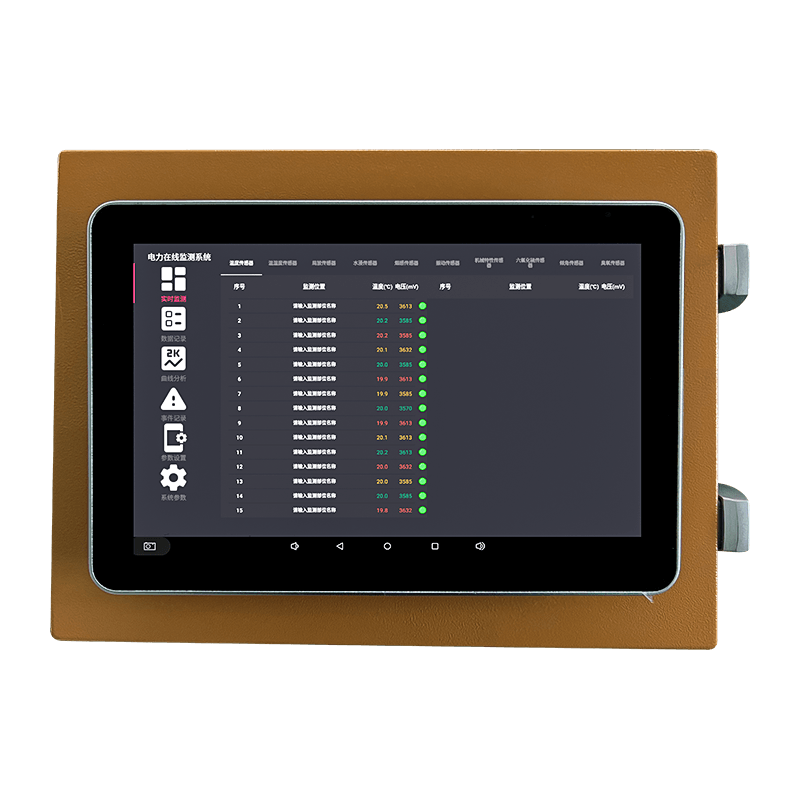

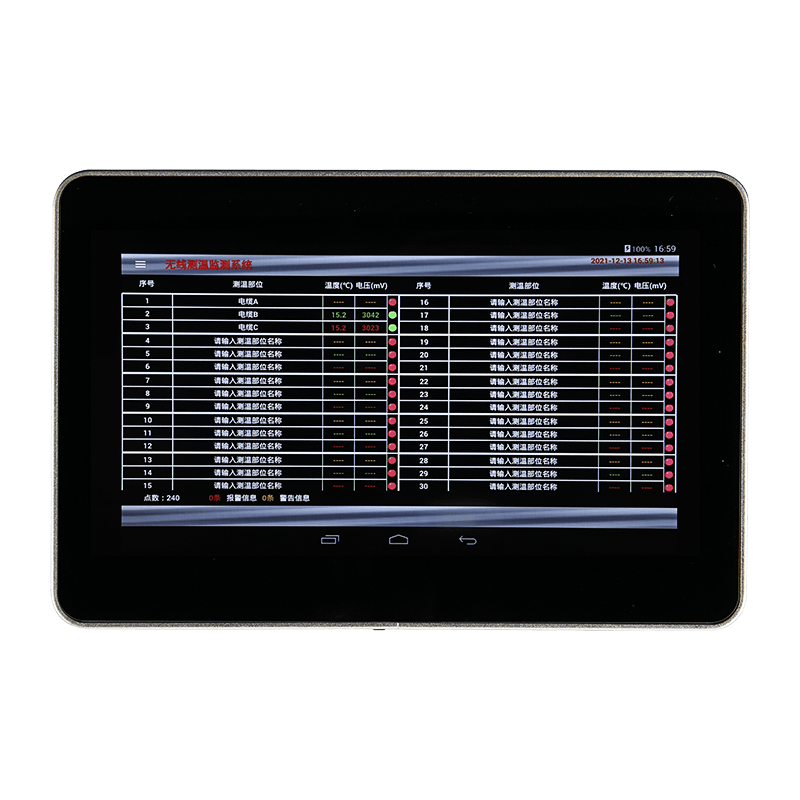

The KL-MT89MP touchscreen wireless temperature measurement host is an industrial-grade 10-inch touchscreen host equipped with a standard communication interface, supporting network operation and capable of receiving data from wireless temperature sensors. Simultaneously, with the help of host computer software, the host can record real-time operating temperature data of high-voltage equipment, enabling proactive maintenance of high-voltage equipment for thermal failures and providing historical data for high-voltage equipment repair.
The wireless temperature monitoring system boasts extremely high reliability and security . The temperature sensor employs ultra-low power wireless communication, transmitting the collected temperature data to the wireless temperature monitoring host via a wireless network. The wireless temperature sensor is directly installed at the temperature monitoring point of each high-voltage electrical device, such as industrial production equipment, high-power motors, high-voltage switches, busbar joints, outdoor disconnectors, transformers, and other electrical contacts prone to high temperatures.
Introduction to Main Functions
|
Main functions
|
Function Introduction
|
|
Basic function
|
Receive data
|
Receive temperature and sensor operating voltage uploaded by wireless temperature sensor
|
|
Display data
|
The received data is displayed in color, providing a more intuitive viewing experience. The backlight is controllable and suitable for a variety of applications.
|
|
Clock display
|
A real-time clock is displayed and serves as the time reference for event logging.
|
|
Parameter settings
|
All parameters are flexibly adjustable, easy to operate, and data is not lost even when power is off.
|
|

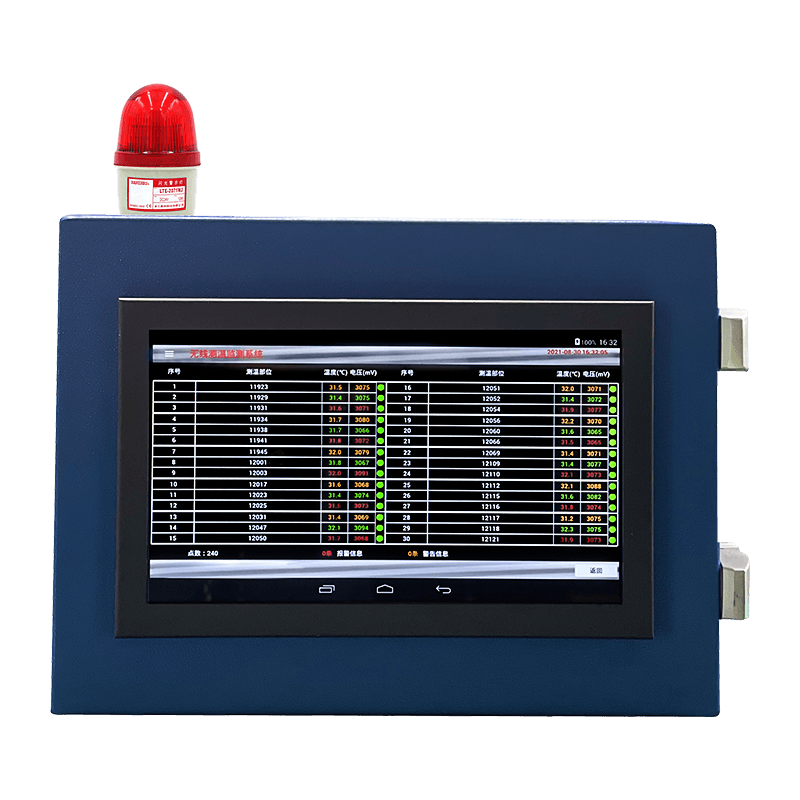

Alarm output
|
When an alarm event occurs, the relay dry contact outputs a signal and emits a buzzer alarm sound.
|
|
Temperature alarm record
|
Record the temperature at the temperature measurement location where an alarm has occurred.
|
|
Password Management
|
Password management is used; a password is required to set parameters. There are two types of passwords: user password and system password. Entering the system password allows access to more advanced settings.
|
