Product overview
The KL-DS30YS wireless temperature sensor is a high-precision, low-power temperature sensor with wireless transmission capabilities. It consists of a temperature sensor, signal modulation and amplification device, logic control circuit, wireless communication circuit, lithium battery, and antenna. The sensor uses ultra-low-power wireless communication to transmit the collected temperature data to the wireless temperature measurement host via a wireless network.

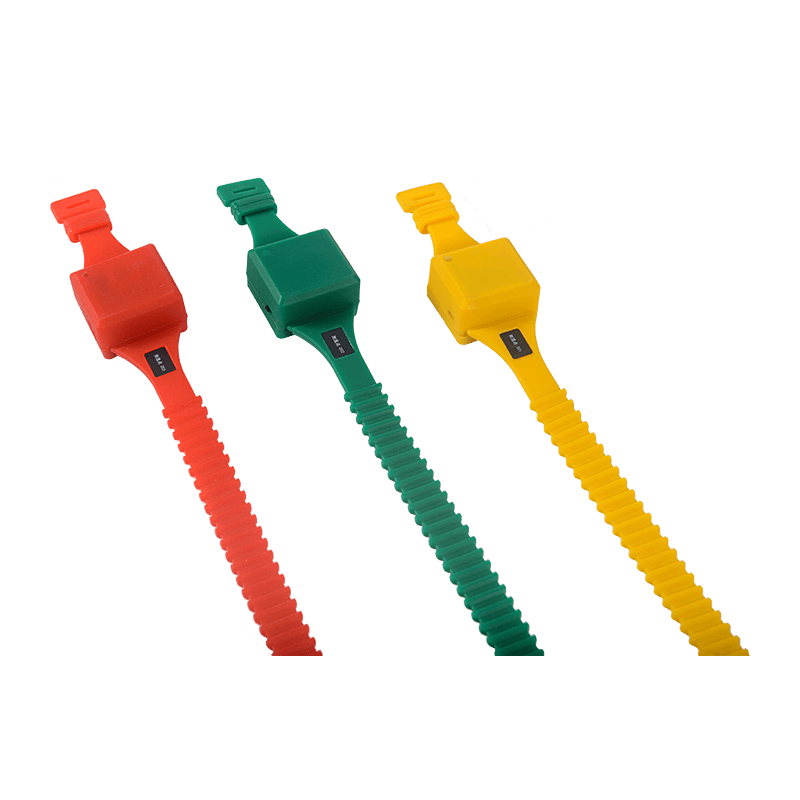

This temperature sensor is equipped with a temperature probe and is suitable for single-channel temperature detection. It features a strap-type mounting design, allowing direct installation on the surface of the object being measured, making it easy to install and secure.
This temperature sensor is mainly used to measure the temperature of the surface or contact points of high-voltage energized objects, such as the operating temperature of industrial production equipment, high-power motors, exposed contacts in high-voltage switchgear, busbar connections, outdoor disconnectors, and transformers.
Main technical parameters
|
Temperature measurement range
|
-40～+200℃
|
|
Measurement accuracy
|
±1℃
|
|
Temperature sampling frequency
|
Default 10 seconds
|
|
Communication methods
|
FSK
|
|
wireless frequency
|
433MHz
|
|
Wireless transmission distance
|
≤300 meters (open space)
|
|
Battery lifespan
|
5-8 years
|
|
Installation method
|
Bundled
|
|
Total length of watch strap
|
385mm
|
|
External dimensions
|
38mm*35mm*24mm
|
|
Installation location
|
Removable high-voltage switchgear: busbars, stationary contacts, cable connections, etc.
Fixed high-voltage switchgear: busbars, isolating switches, cable connections, etc.
|
